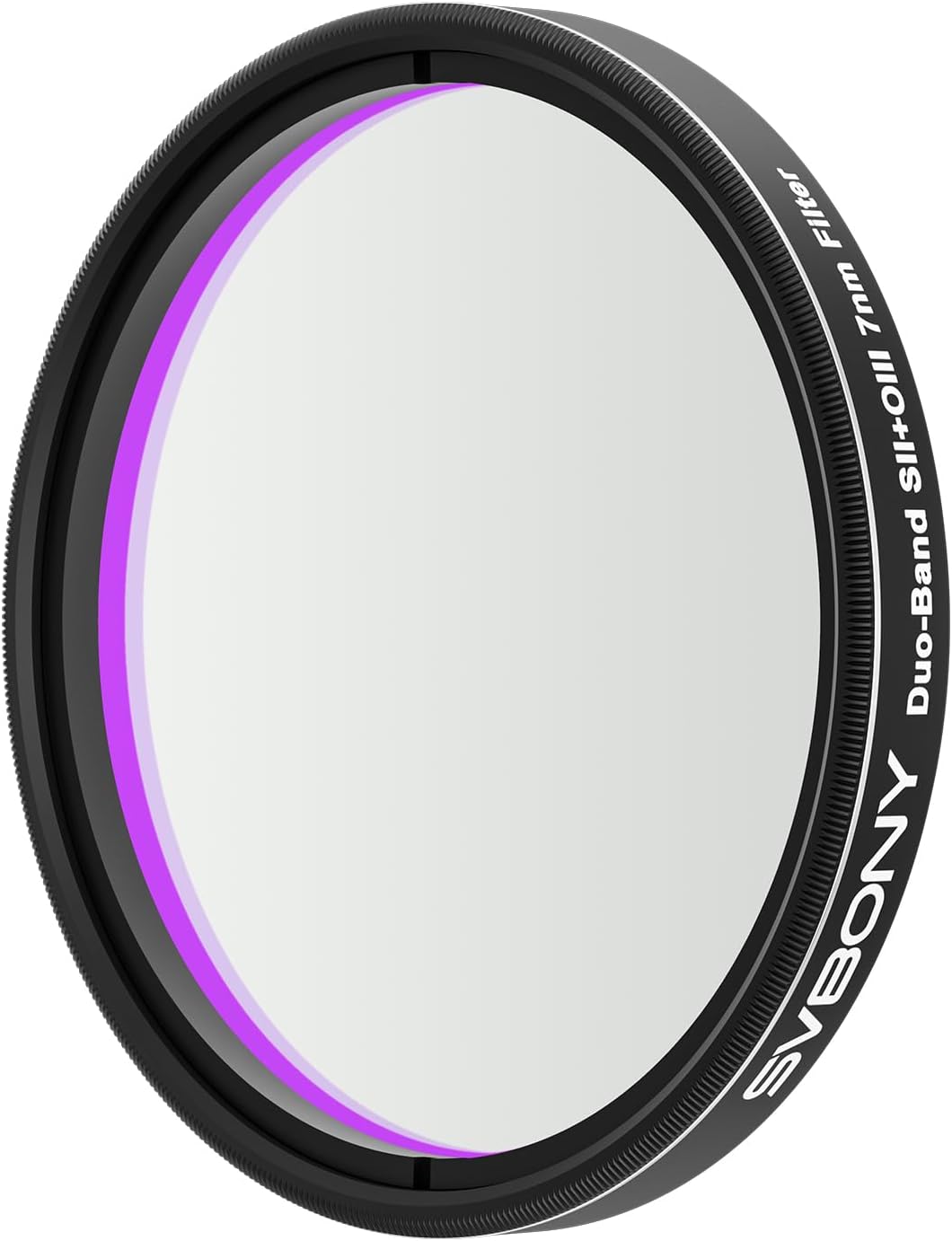

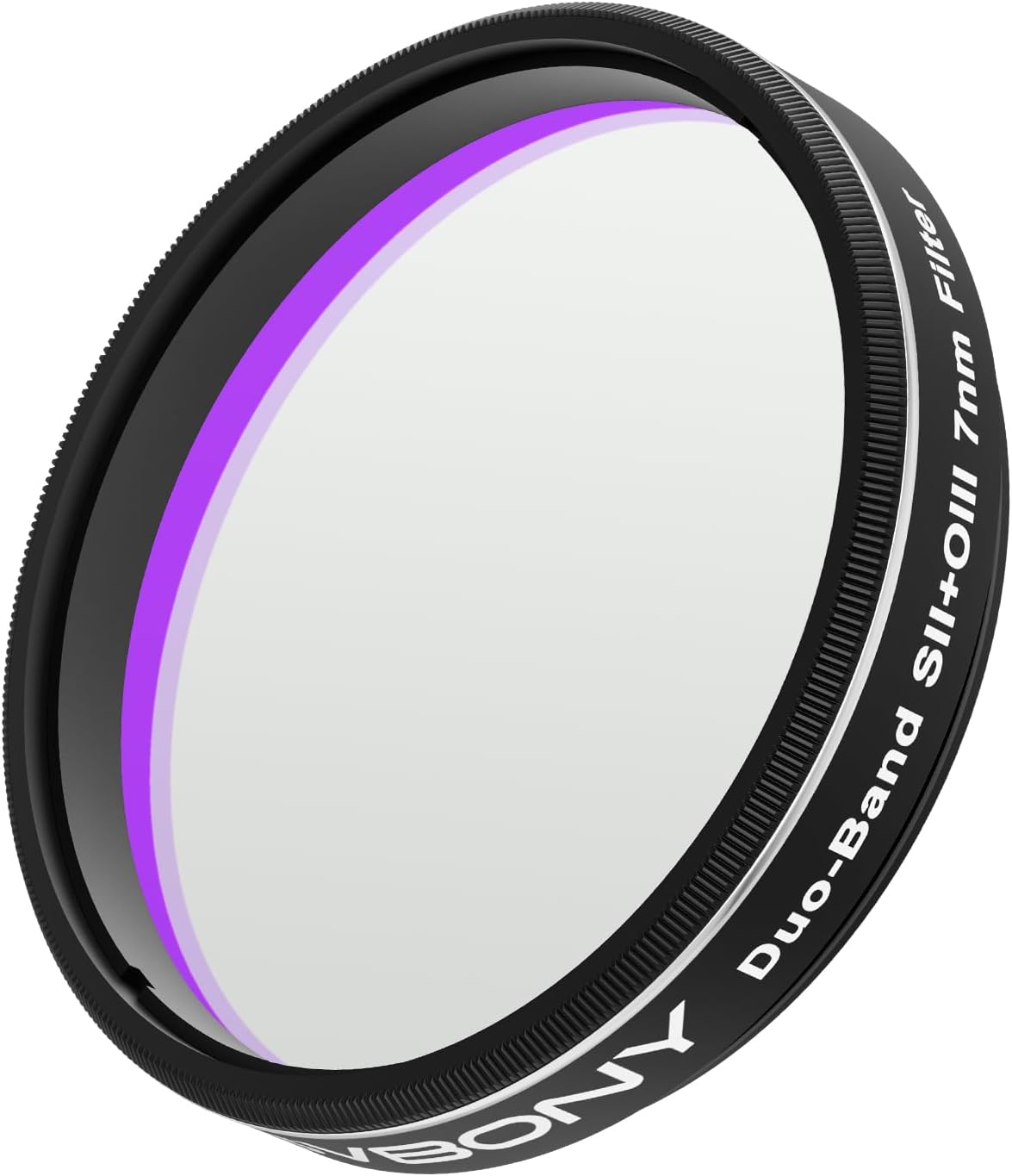

Svbony SV220 Telescope Filter, SII & OIII, 7nm Dual-Band 1.25" Nebula Filter, 88% Peak Transmission with OD5 Cut-Off Depth Telescope Accessory, Reduce Light Pollution, for Imaging emission Nebulae
Svbony SV220 Telescope Filter, SII & OIII, 7nm Dual-Band 1.25" Nebula Filter, 88% Peak Transmission with OD5 Cut-Off Depth Telescope Accessory, Reduce Light Pollution, for Imaging emission Nebulae
Couldn't load pickup availability
Sharper Nebula Imaging
Featuring a 7nm FWHM bandwidth and Tavg ≥88% transmission, it precisely isolates key nebula emission lines while blocking over 99.999% of unwanted light (OD5). With its wide 300–1000nm cut-off range, this filter delivers exceptional light pollution resistance and a higher signal-to-noise ratio, ensuring crisp, high-contrast deep-sky images even under city skies.
Combination
The SV220 1.25" SII + OIII 7nm Dual-Narrowband Nebula Filter is compatible with the following components: SV550 Telescope(not included), SV209 Field Flattener(not included), SV226 Telescope Filter Drawer(not included), M42 to M28.5 Adapter (not included), SV405CC Cooled Camera (not included).
Svbony sv220 filters
SV220 7nm H-Alpha&Olll |
SV220 3nm H-Alpha&Olll |
SV220 7nm SII +OIII |
|---|---|---|
|
FWHM 7nm |
FWHM 3±1nm |
FWHM 7nm |
|
Peak Transmittance 94% |
Peak Transmittance OIII, H-alpha average ≥85% |
Peak Transmittance Tavg≥88% |
|
CWL 500.7nm;656.3nm |
CWL 500.7nm;656.3nm |
Thread M28.5x0.6mm |
|

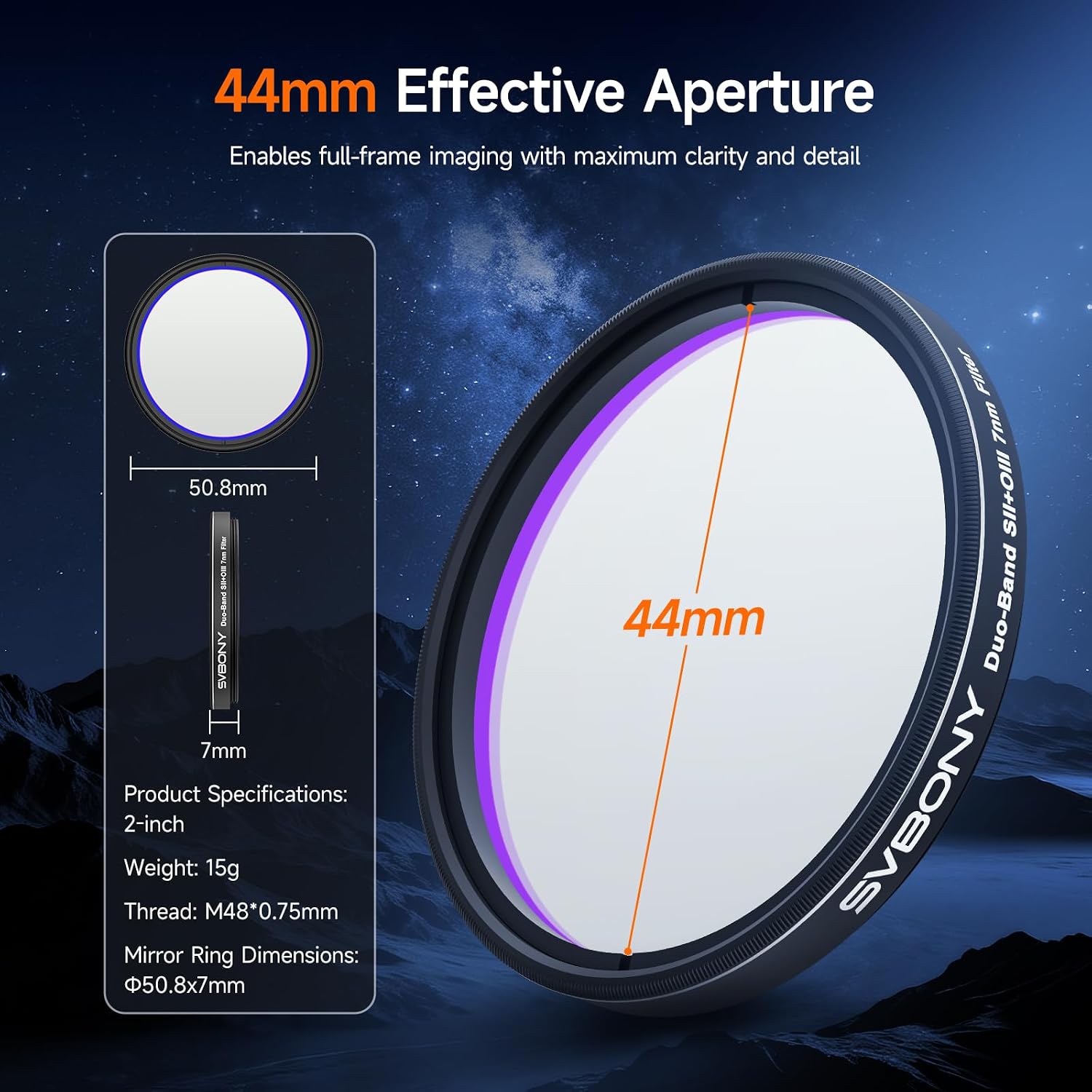

Aperture 44mm |
Aperture 44mm |
Aperture 26mm |
|

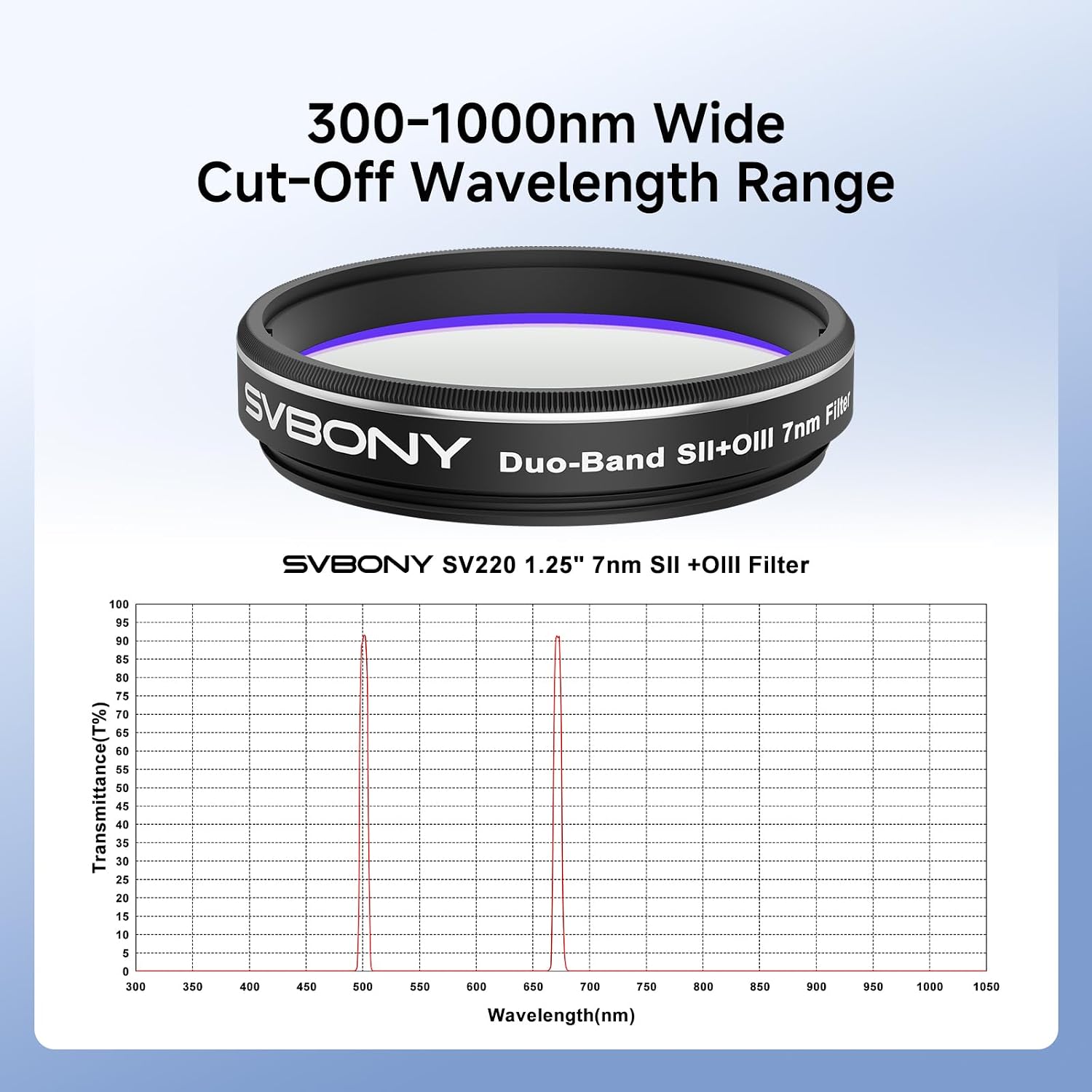

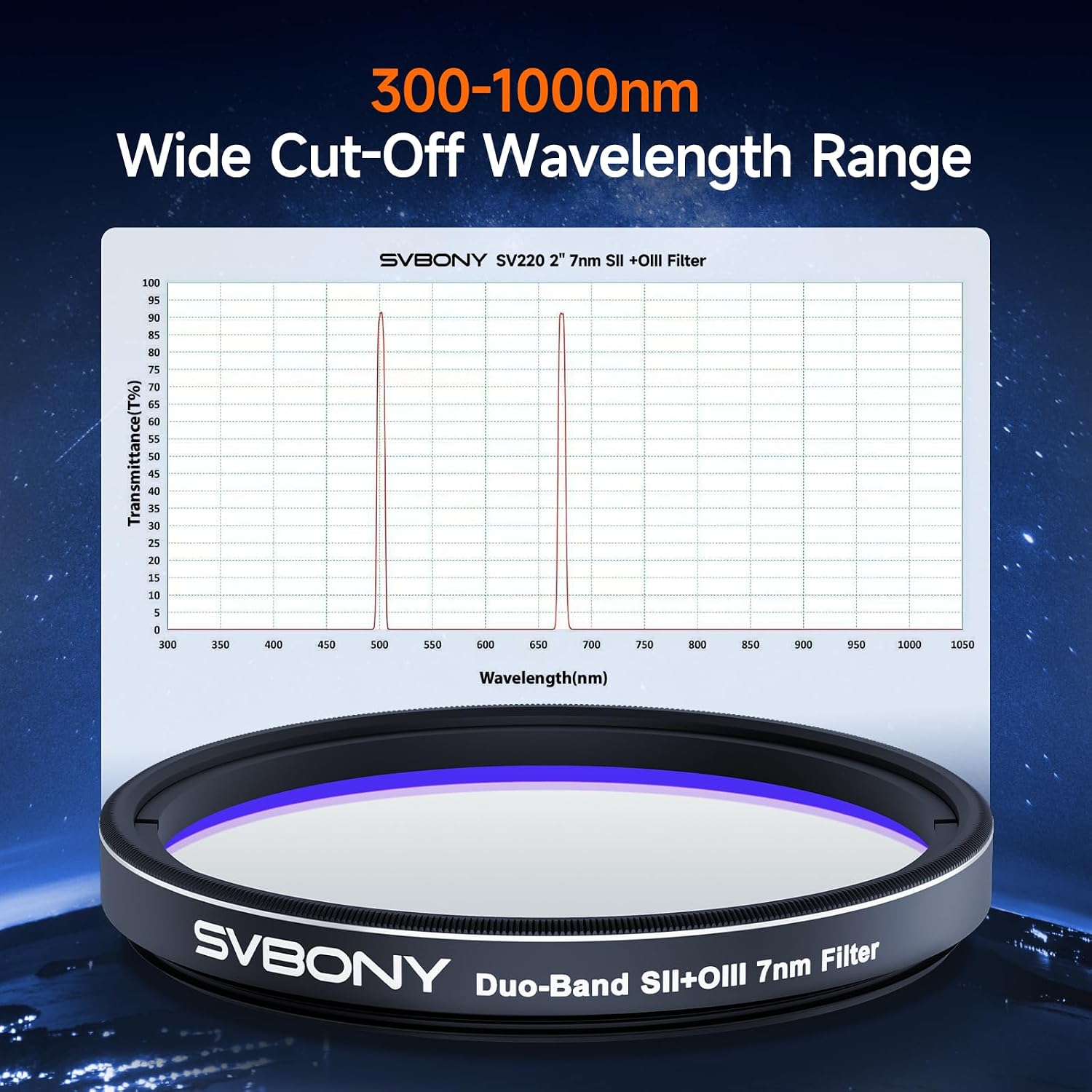

Cut-off Wavelength 300-1000nm |
Cut-off Wavelength 300-1050nm |
Cut-off Wavelength 300-1000nm |

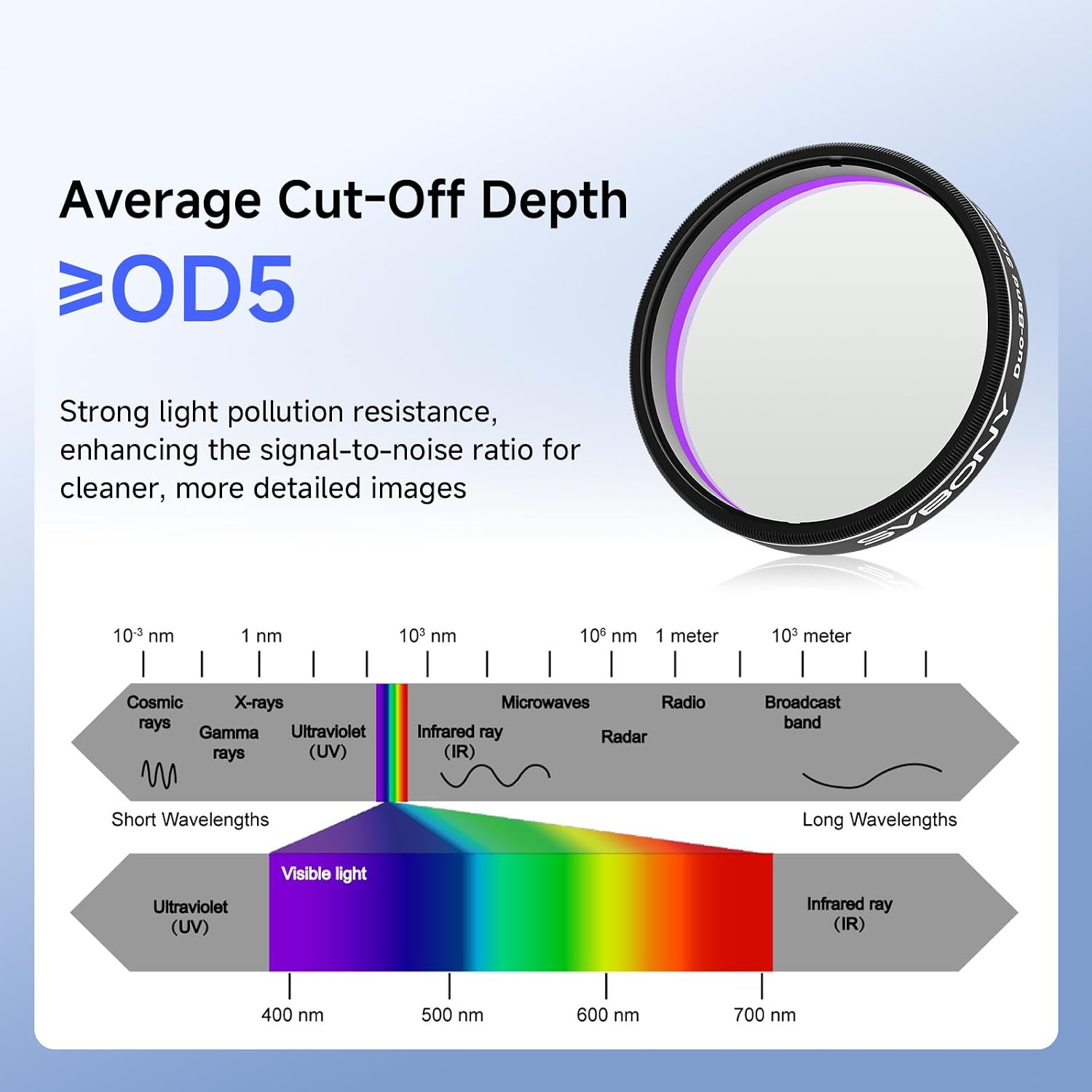

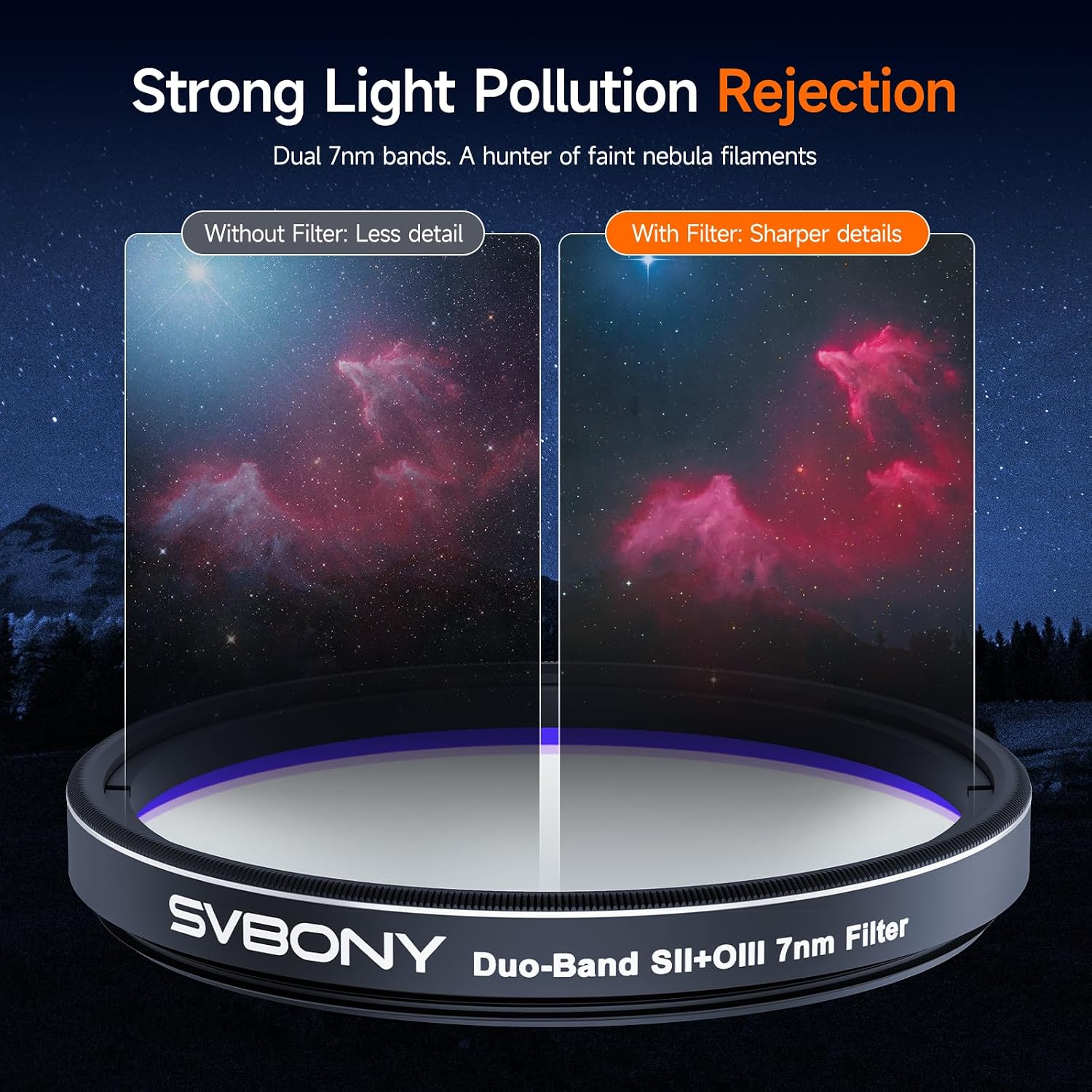

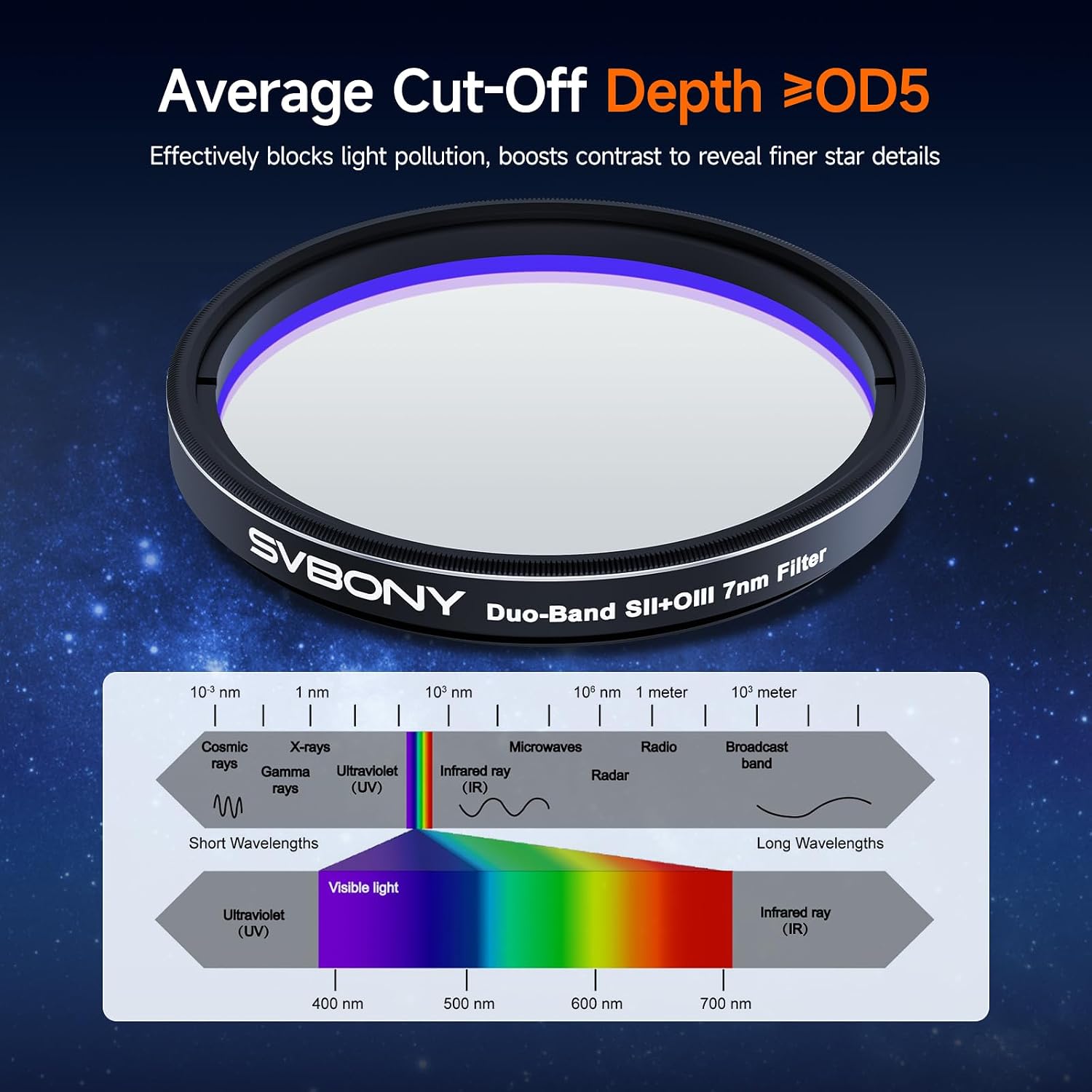

- Average cut-off depth ≥OD5: SVBONY SV220 SII and O-III 1.25-Inch Filter blocks over 99.999% of unwanted light; eliminating skyglow and stray illumination for ultra-clean data capture and vivid; accurate nebula emission details

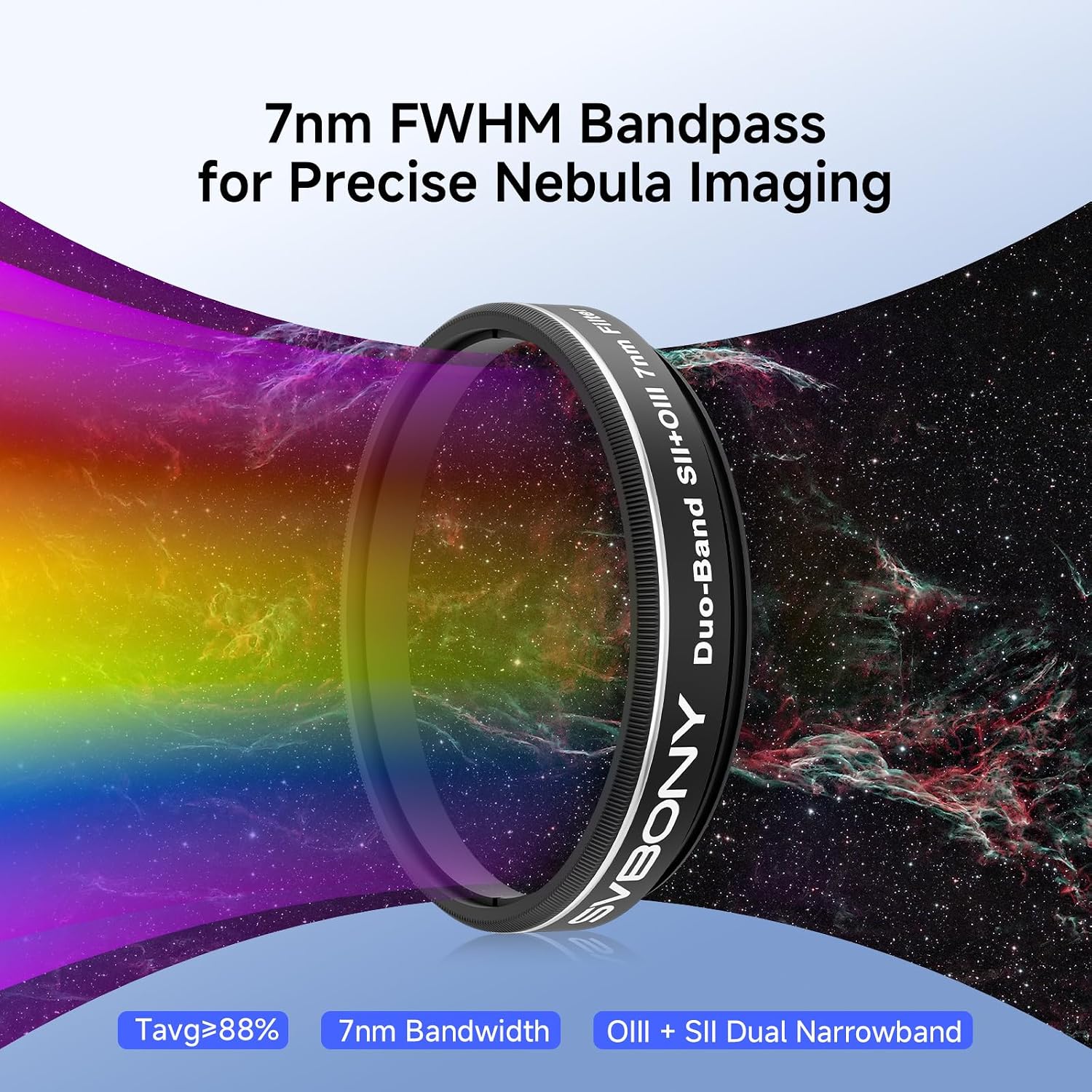

- Precision 7nm bandwidth: the SV220 1.25-Inch Telescope Filter features a precise 7nm bandwidth; isolating SII (672nm) and OIII (500.7nm) lines; reducing background light; and revealing nebular details with high contrast even under light-polluted skies

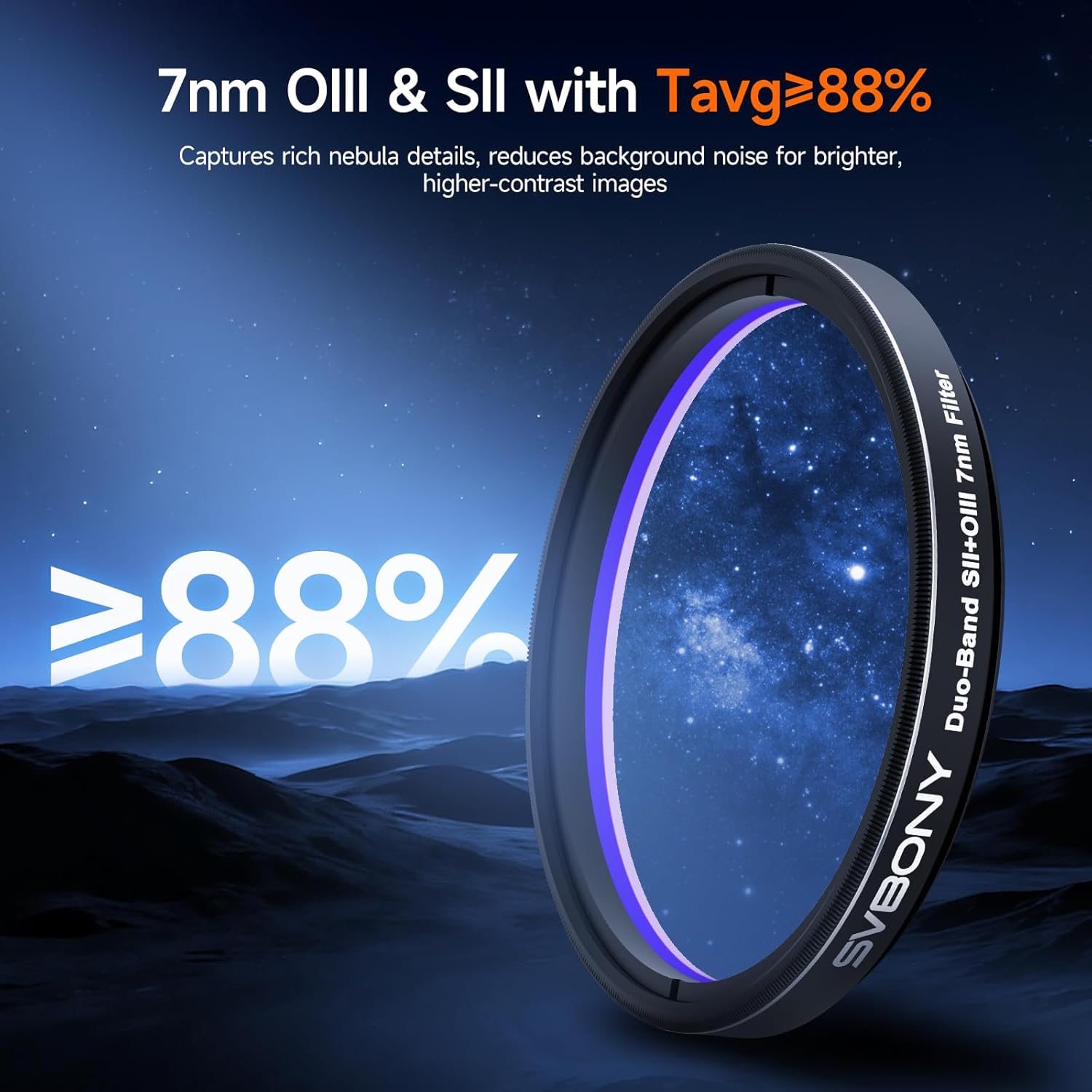

- Peak transmission ≥88% for brighter imaging: 1.25-Inch Telescope Filter delivers 88%+ transmission at SII and OIII; maximizing light; enhancing nebula contrast; revealing fine structures; ideal for one-shot color cameras in light-polluted skies

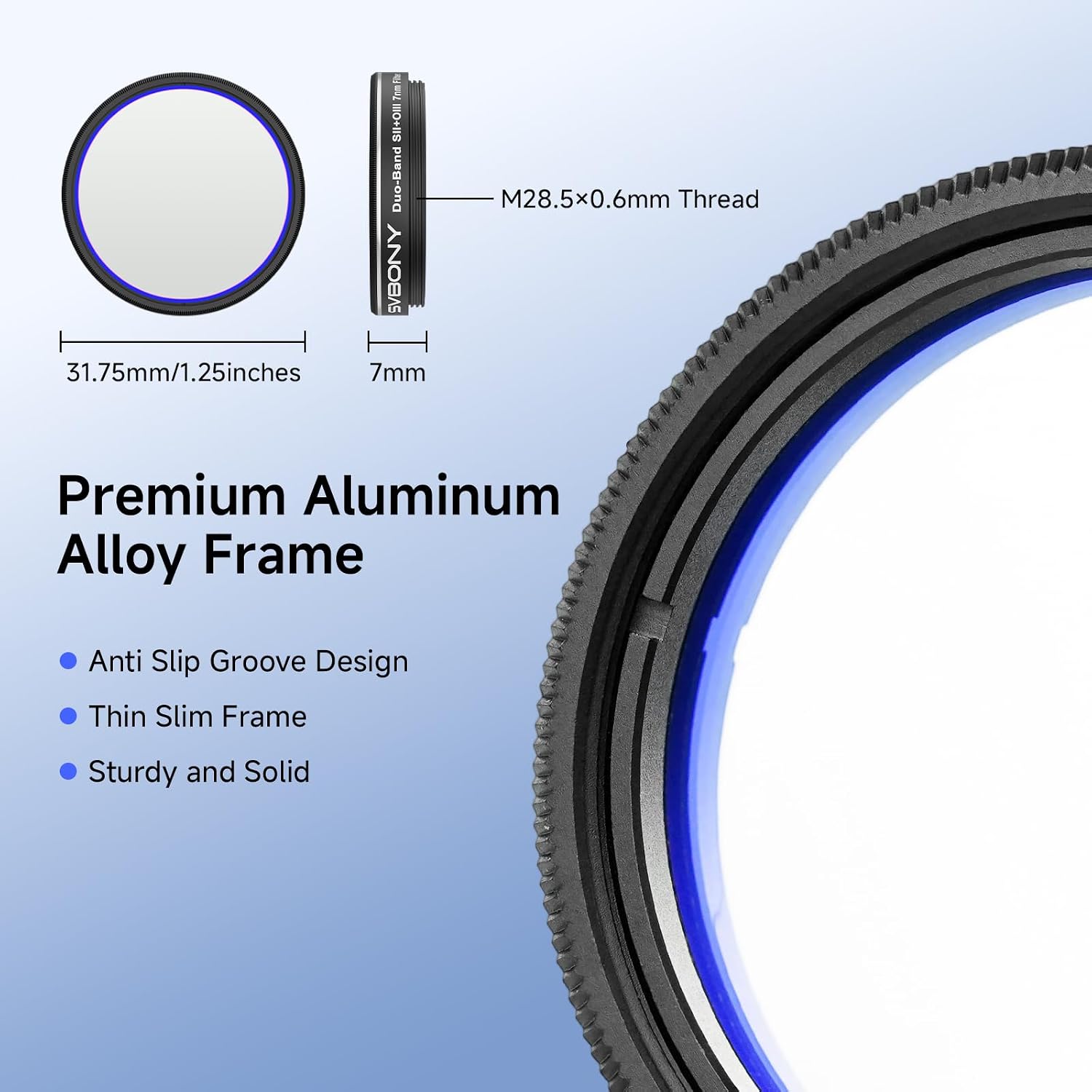

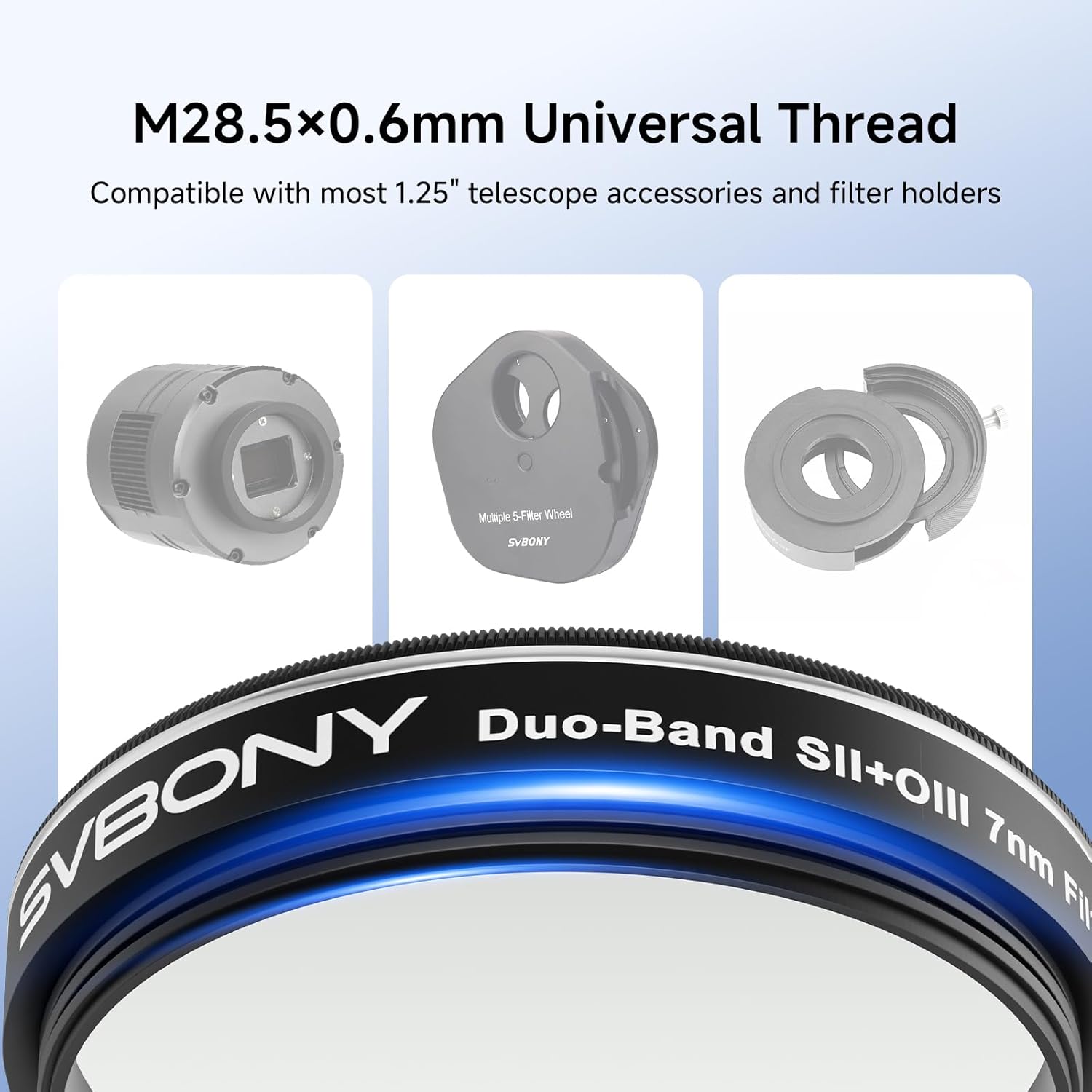

- M28.5×0.6mm universal thread: Narrowband Filter compatible with a wide range of telescopes and optical systems; ideal for deep-sky imaging and capturing emission nebulae with enhanced contrast and detail

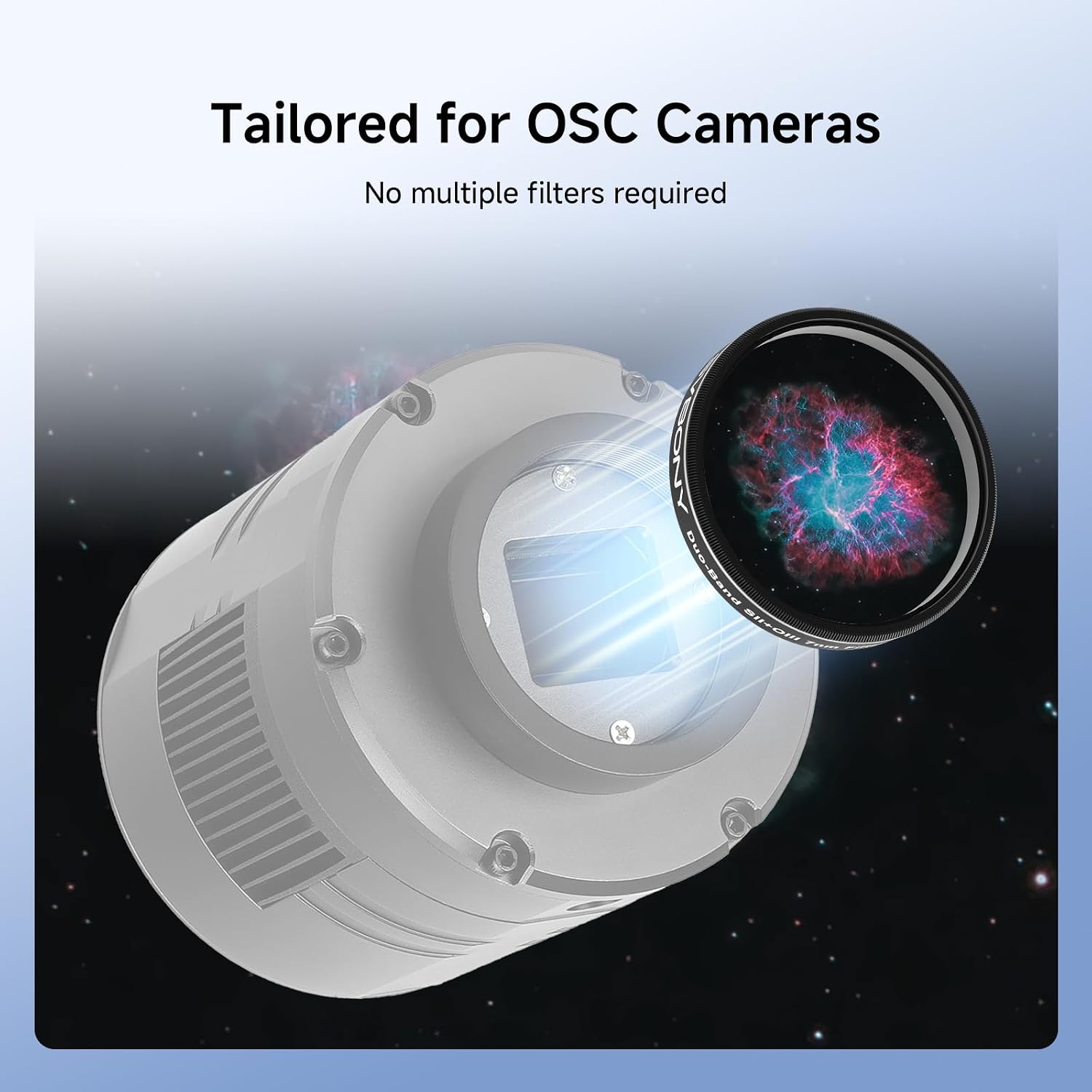

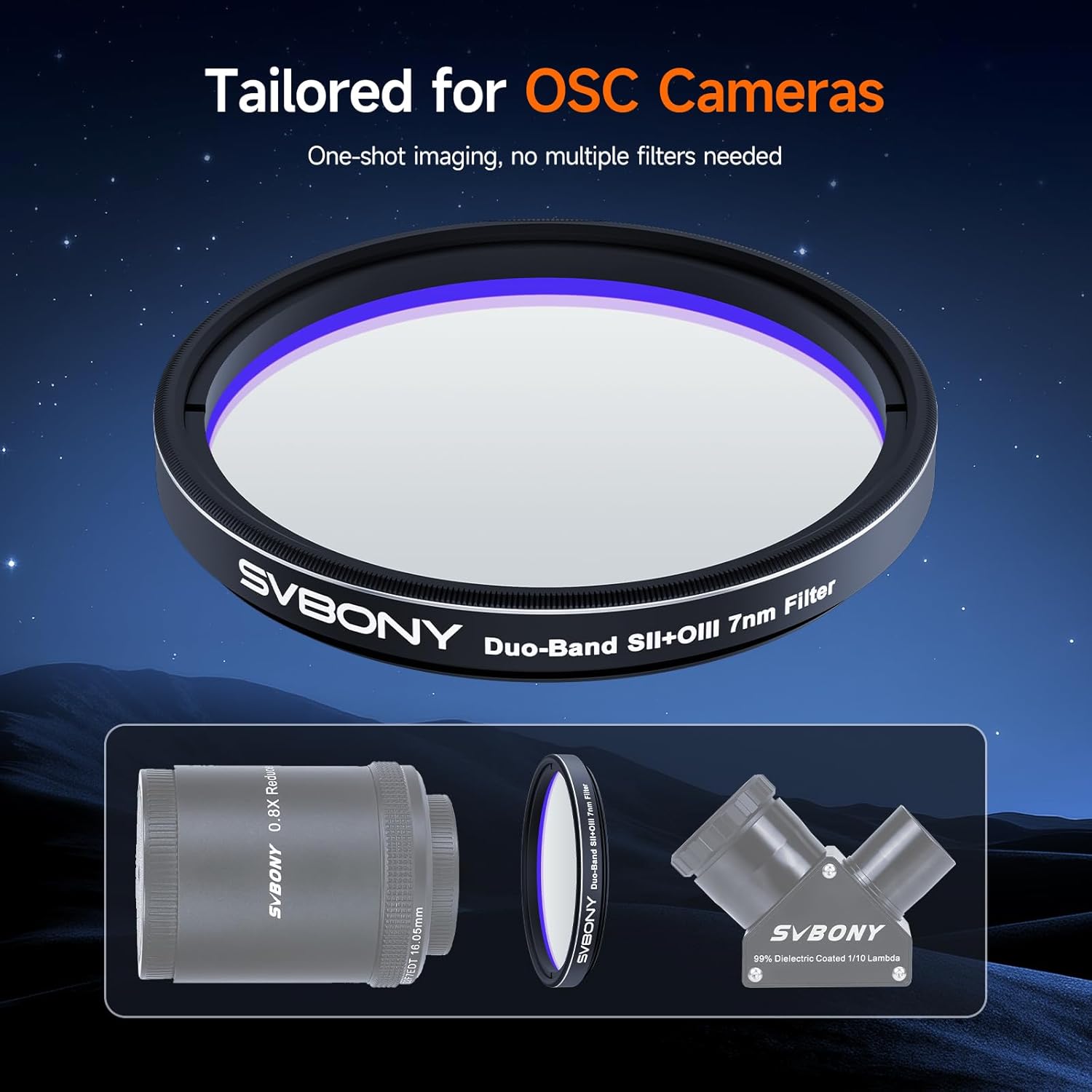

- Optimized for OSC cameras: the SV220 1.25-Inch Telescope Filter captures SII and OIII lines precisely; avoids multiple filter swaps; enables SHO color balance; preserves nebular details; ideal for deep-sky imaging in light-polluted skies
- 26mm effective aperture: the SVBONY SV220 SII and O-III Filter features a 26mm clear aperture; suitable for small and medium-sized sensors; ensuring full light transmission and optimal imaging performance
- Optical systems from > f/4: SV220 1.25-Inch Telescope Filter is not suitable for visual observation and not designed for imaging; recommended for optical systems from > f/4
| Brand | SVBONY |
| Material | Aluminium |
| Photo filter thread size | 28.5 Millimetres |
| Coating description | Multi Coating |
| Photo filter effect type | Nebula Enhancement |
| Water resistance level | Not Water Resistant |
| Product dimensions | 32L x 32W millimetres |
| Photo Filter Size | 28.5 Millimeters |
| Number of items | 1 |
| Set Name | single |
