Svbony SV220 Telescope Filter, H-Alpha & OIII, 7nm Dual-Band 1.25" Filter | Urban Emission Nebula Imaging, 85% Transmission Rate with OD5, H-Alpha (656nm) and OIII (500nm) Wavelengths

£98.99 GBP

~~£98.99 GBP~~ £98.99 GBP

Sale Sold out

Shipping calculated at checkout.

Size Name 7nm 1.25inch 3nm 1.25inch 7nm 2inch 3nm 2inch

Svbony SV220 1.25" Dual Narrowband H-Alpha OIII Filter for CMOS Cameras

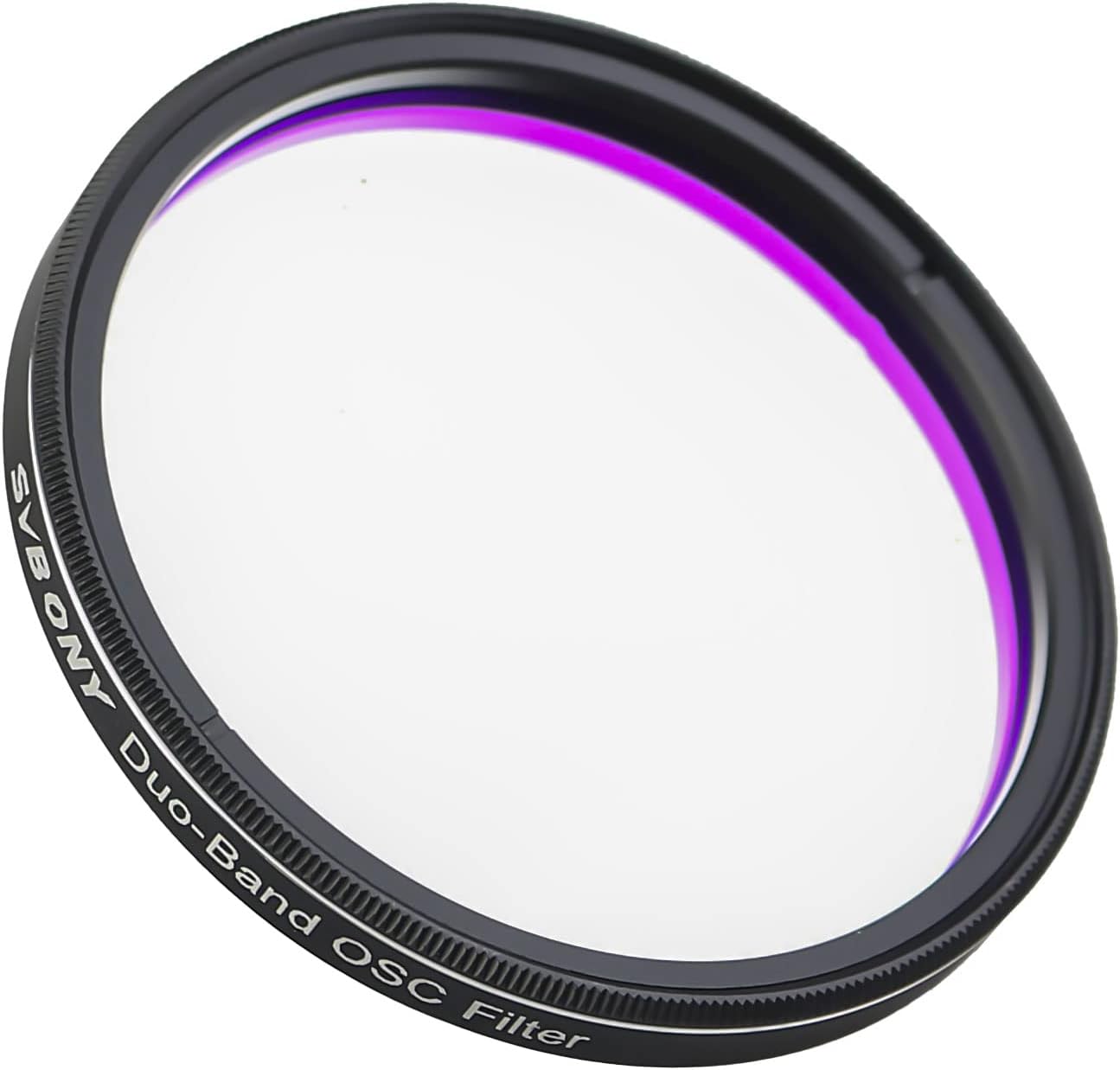

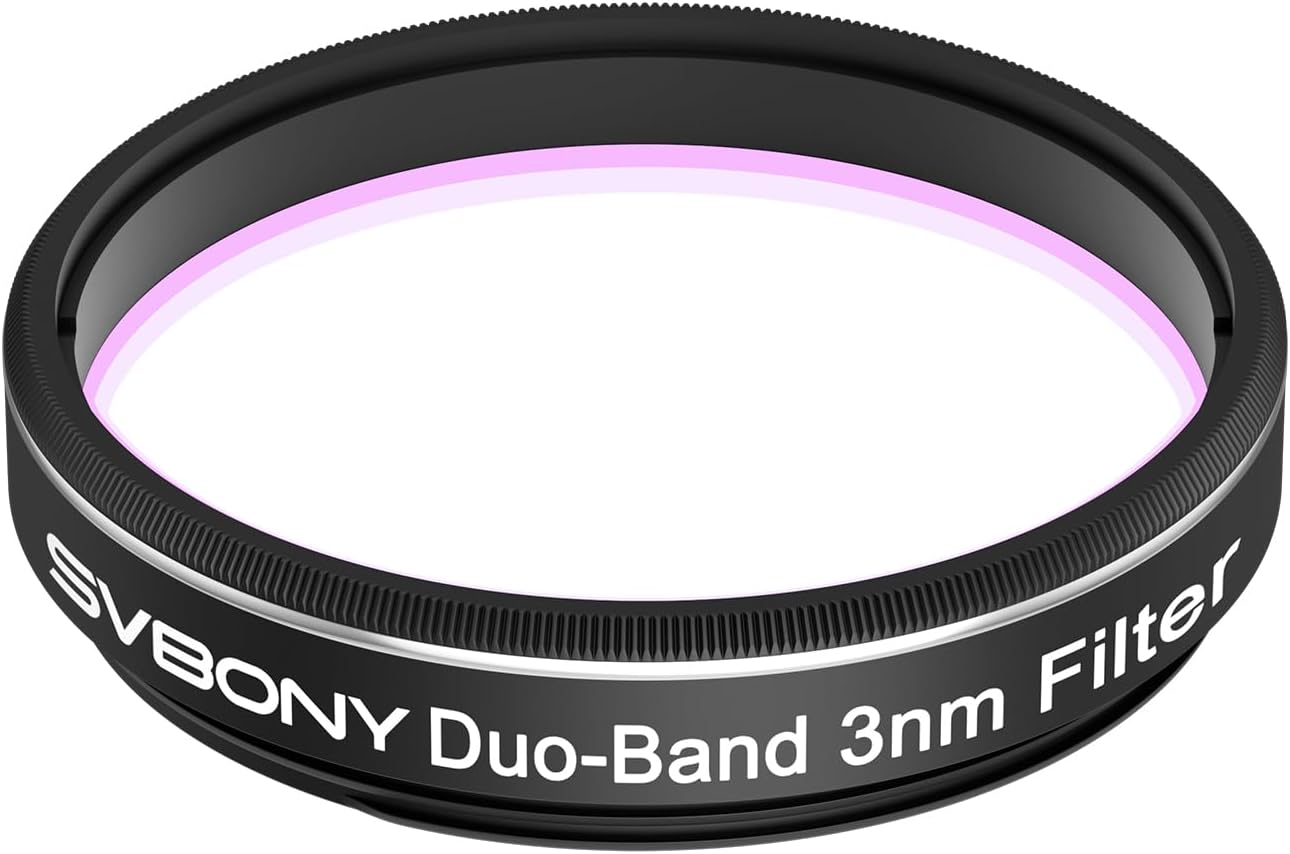

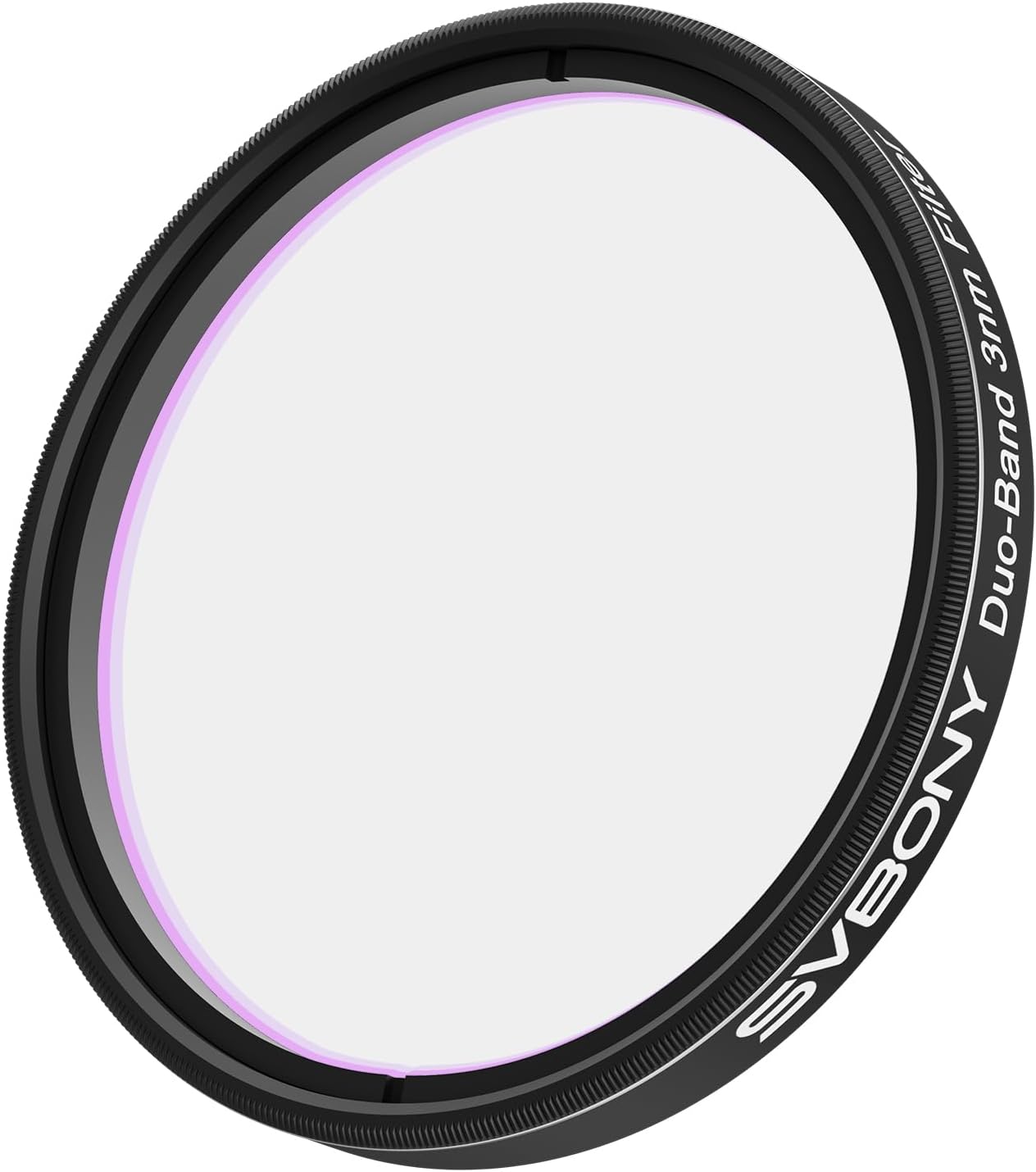

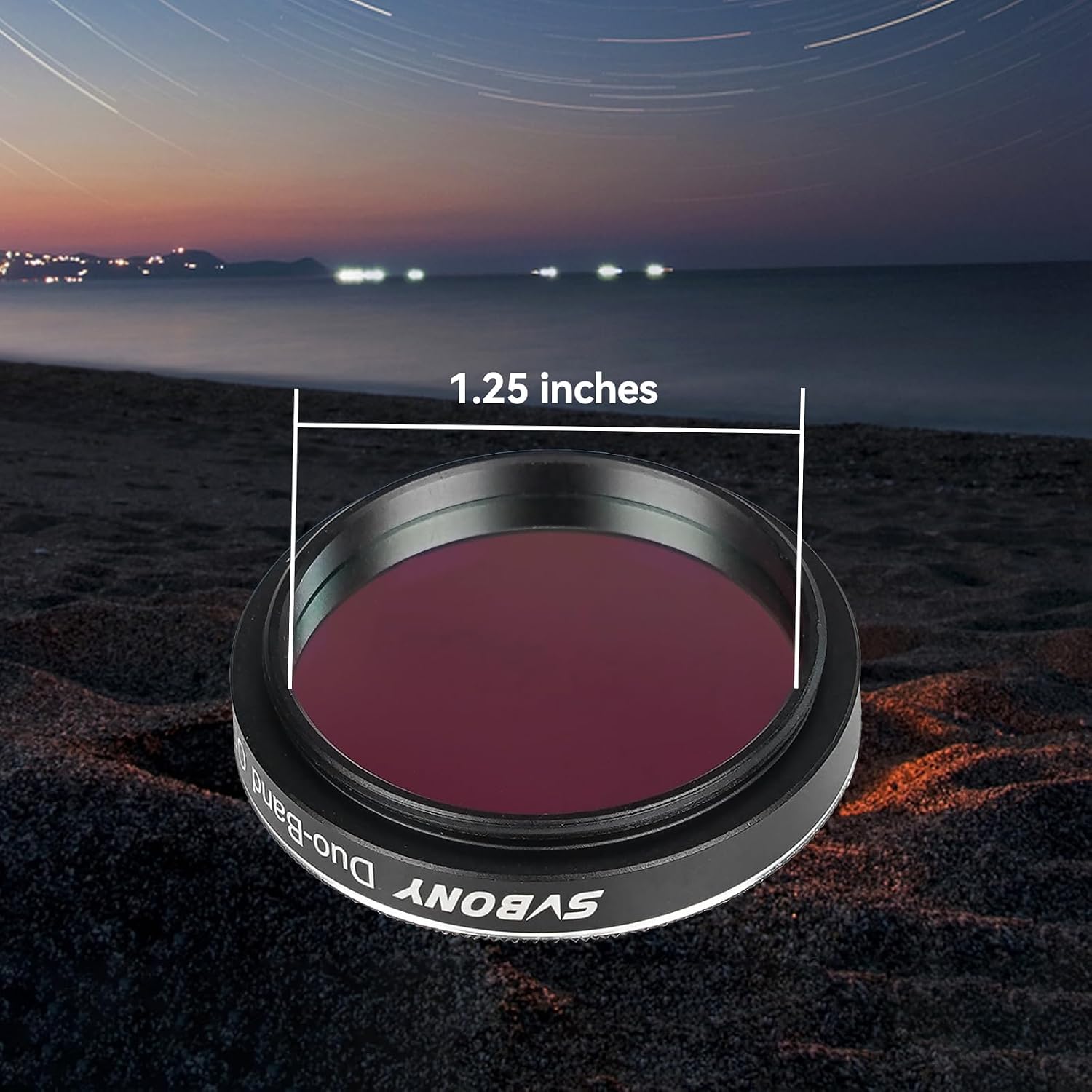

SV220 Dual-Band 1.25 inches telescope filter. Product image shows the filter with a night sky and telescope in the background.

The filter is suitable for those astronomers who are already imaging using color cameras and don't want to transition to a monochrome camera set. Use the SV220 Dual Band Filter to help you view clearer deep sky images.

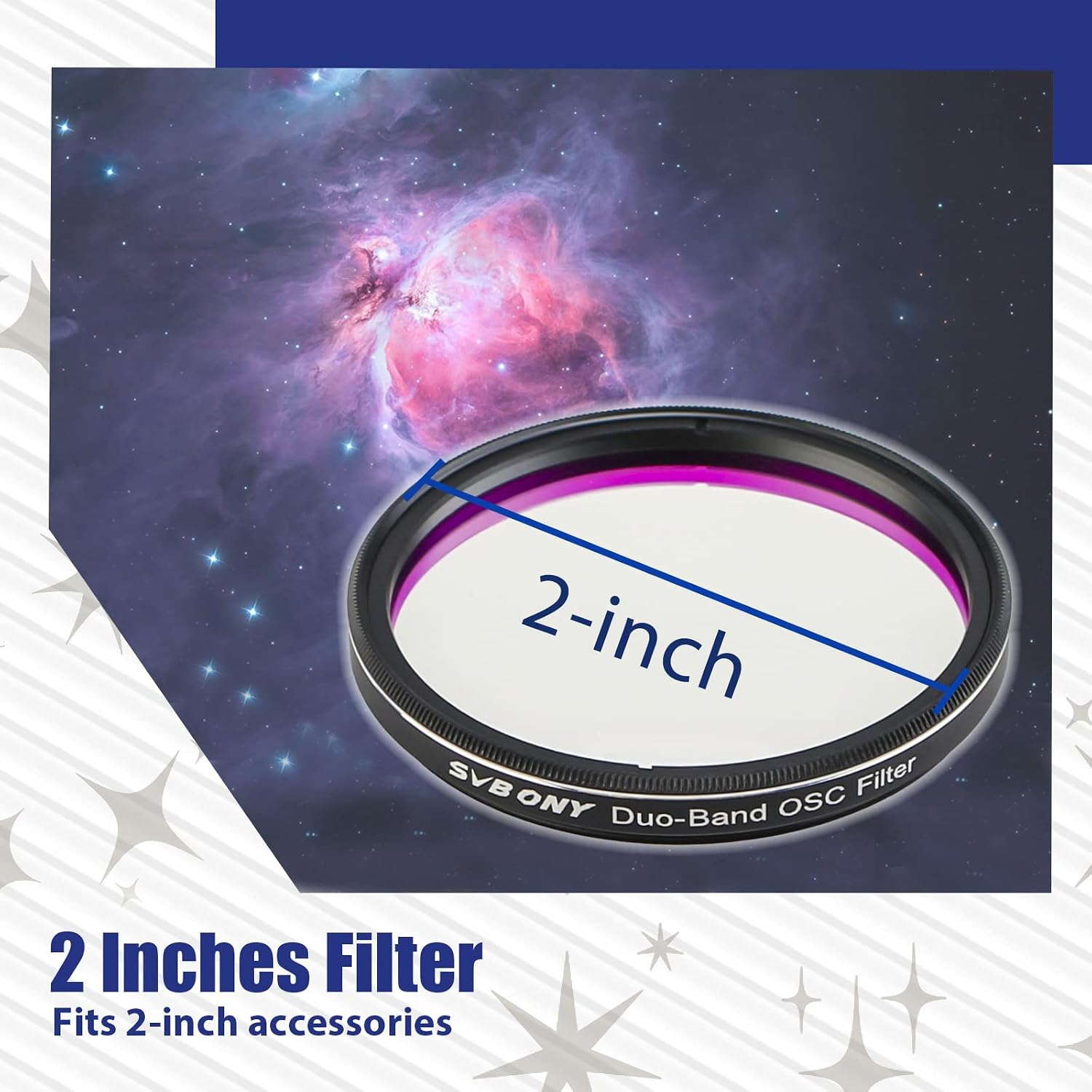

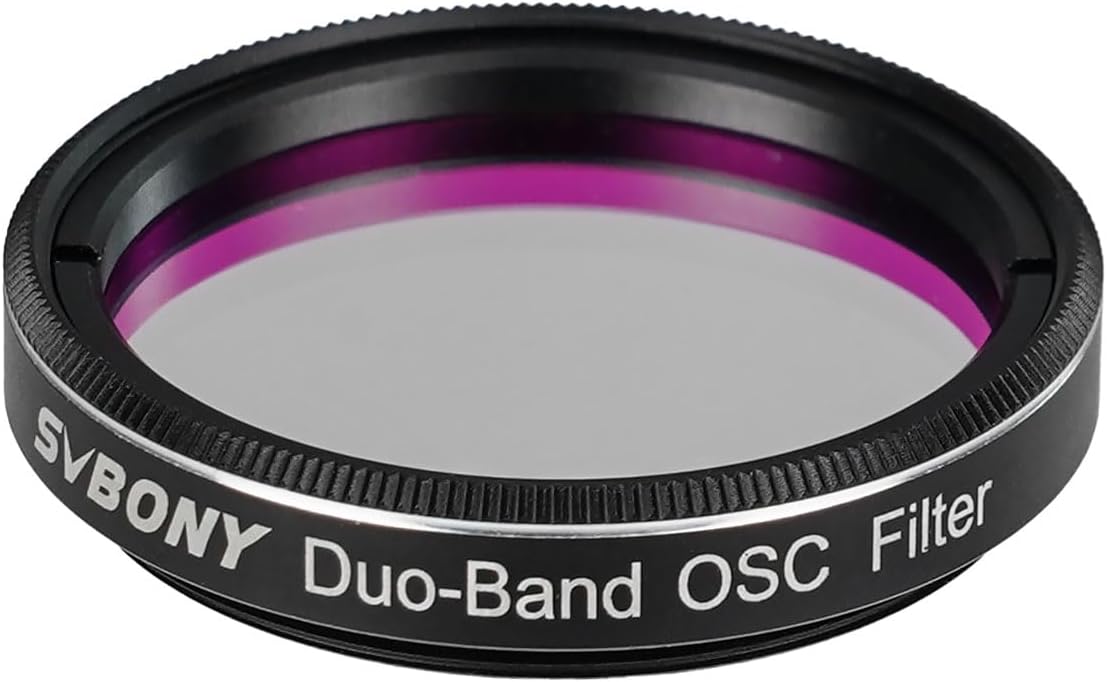

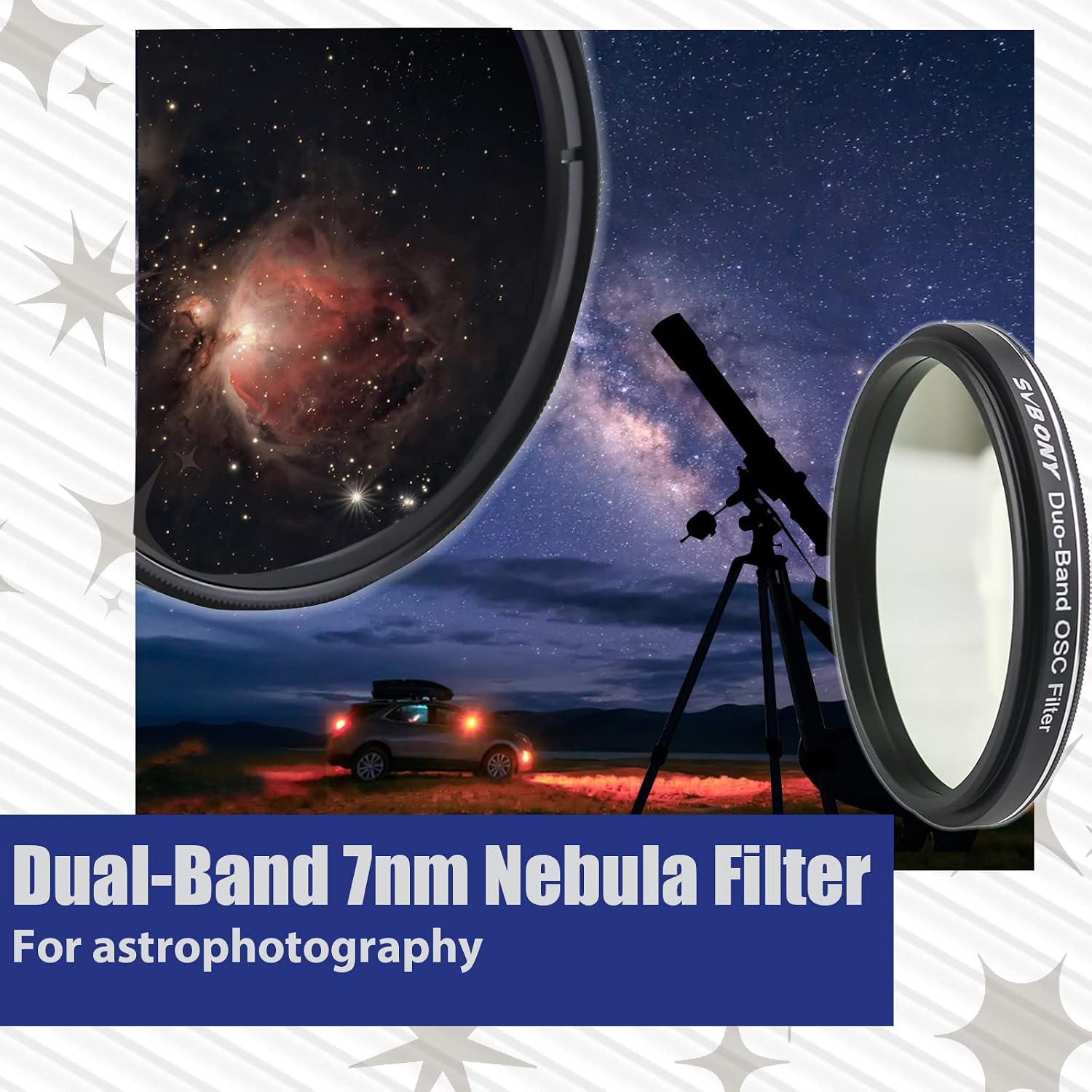

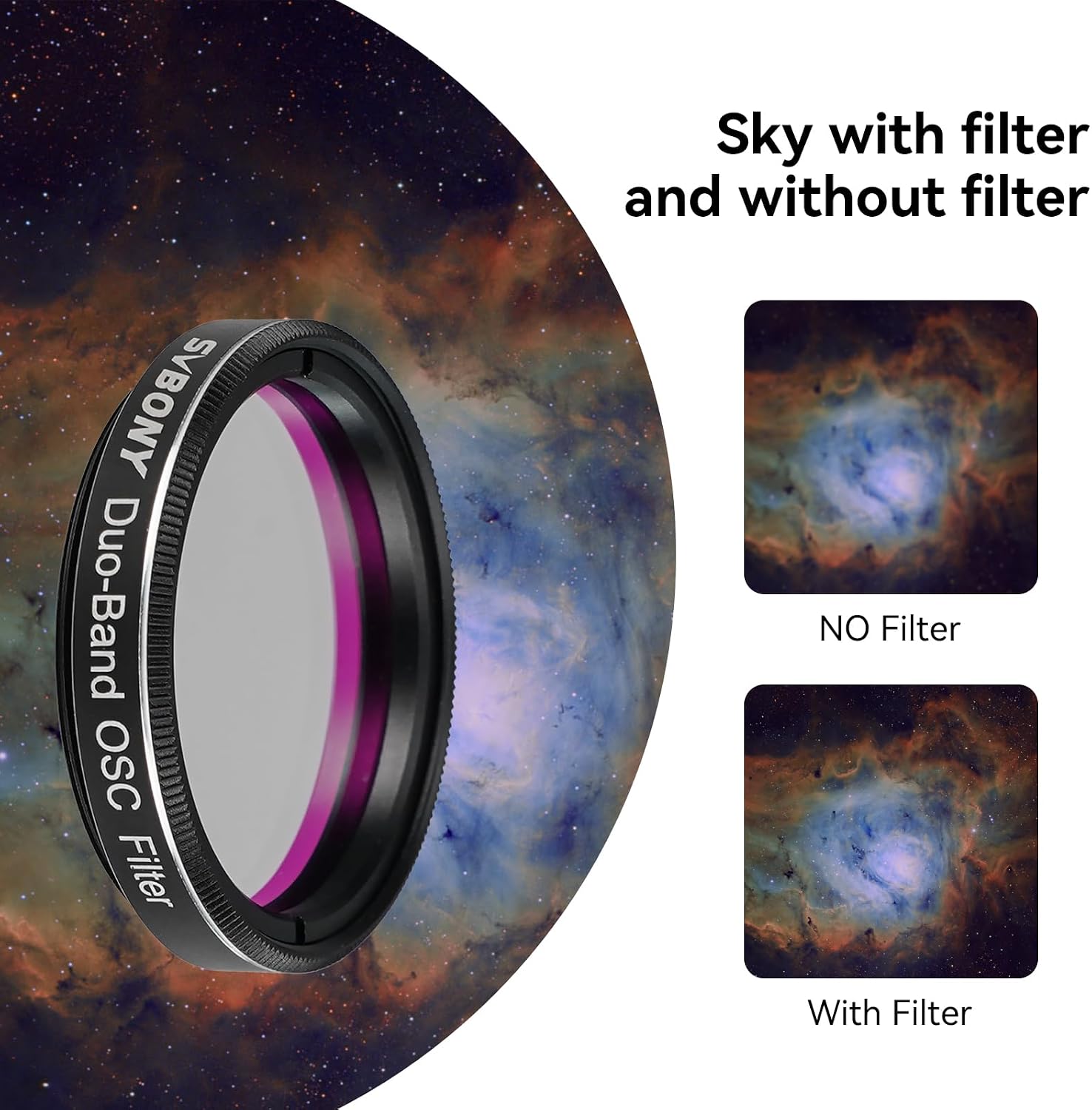

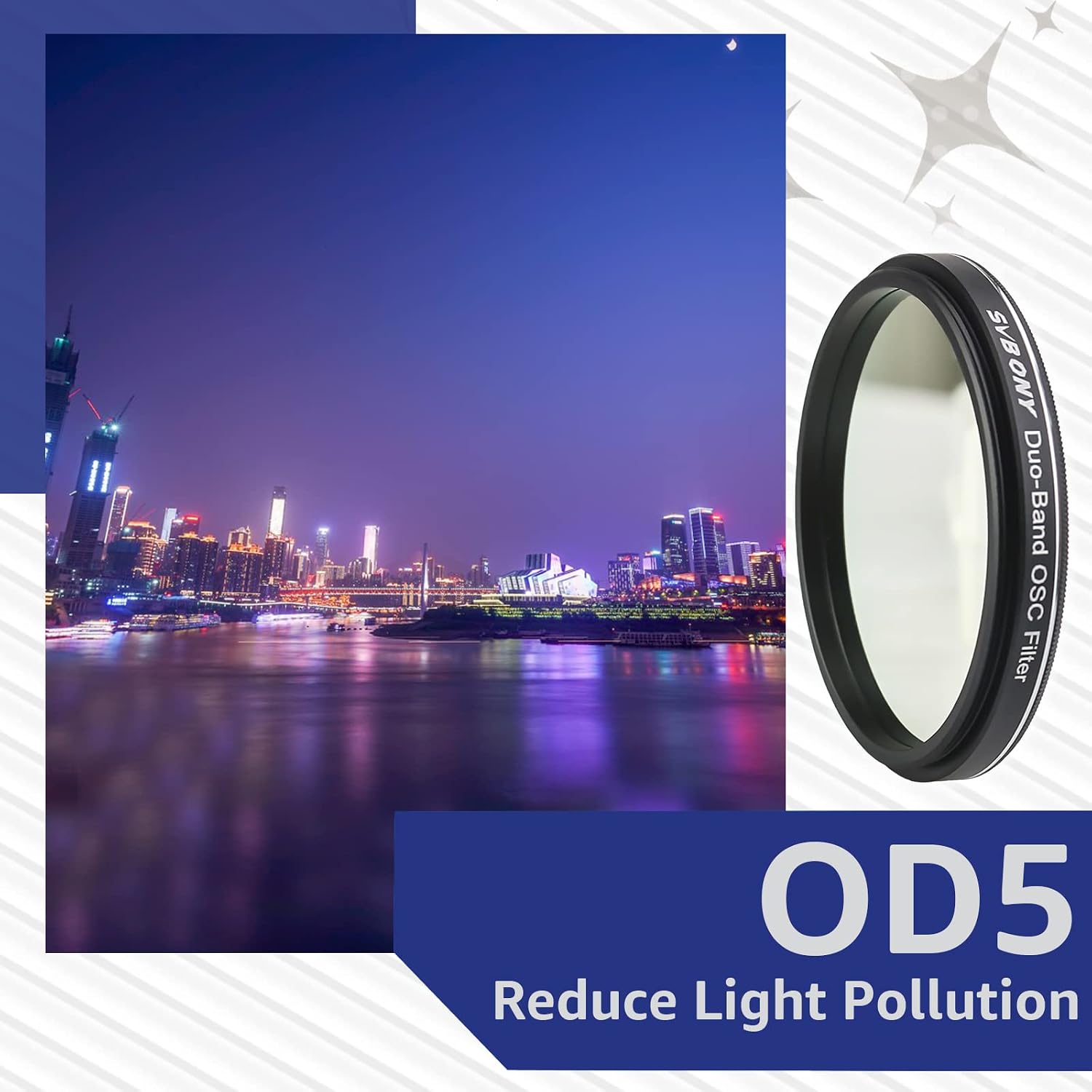

Duo-Band OSC Filter lens for astrophotography, shown against starry sky background. Demonstrates light pollution reduction for celestial imaging.

SV220 telescope filter can help us to dealing with light pollution that is becoming more and more prevalent

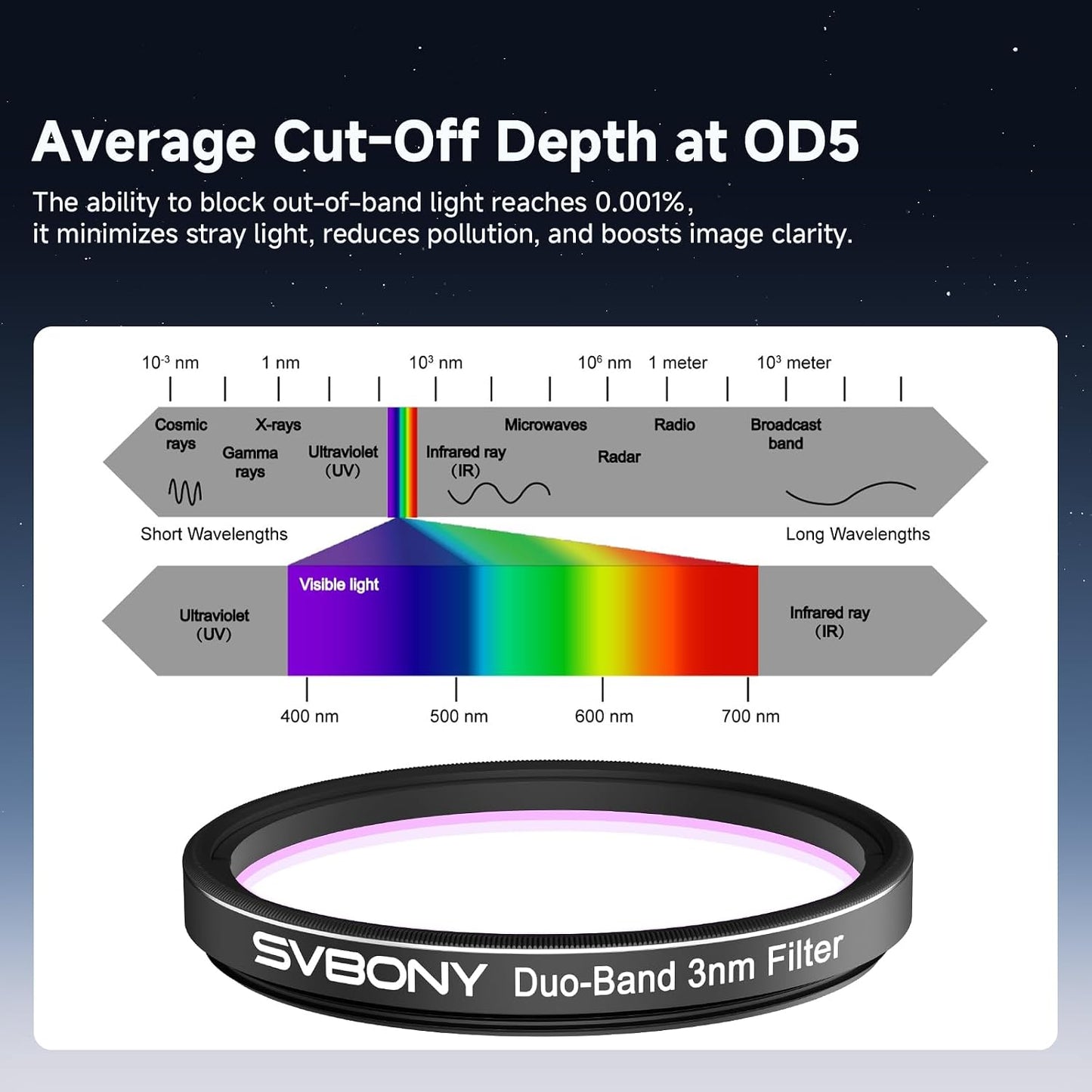

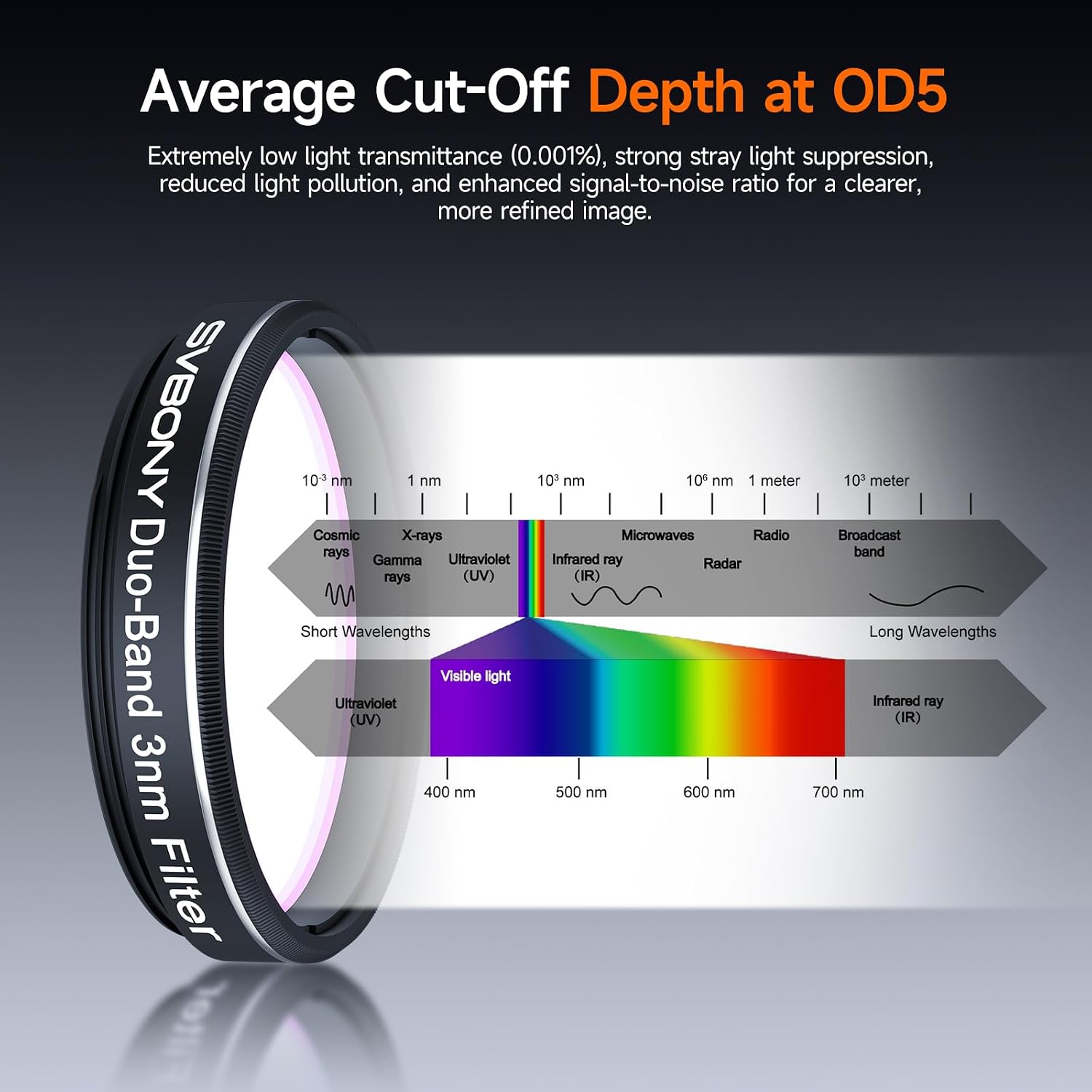

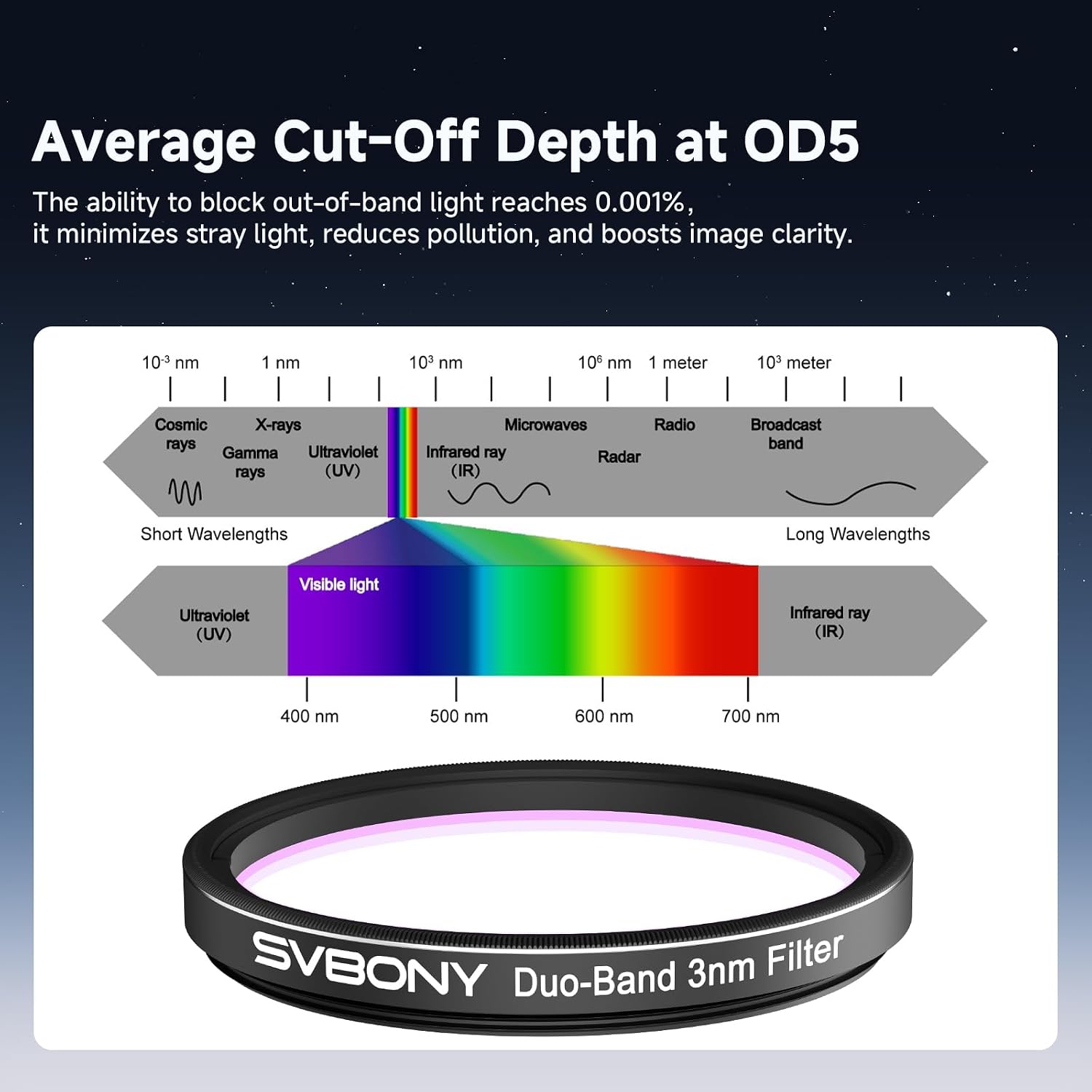

The higher the OD, the cleaner the filter cut-off

Designed to sharply cut off inference of artificial light

Ability to Photograph in moonlit conditions

1.25-inch Dual Band Filter Size
Contrast and visibility of deep sky objects such as emission nebulae is improved. Design for the high light polluted location like city

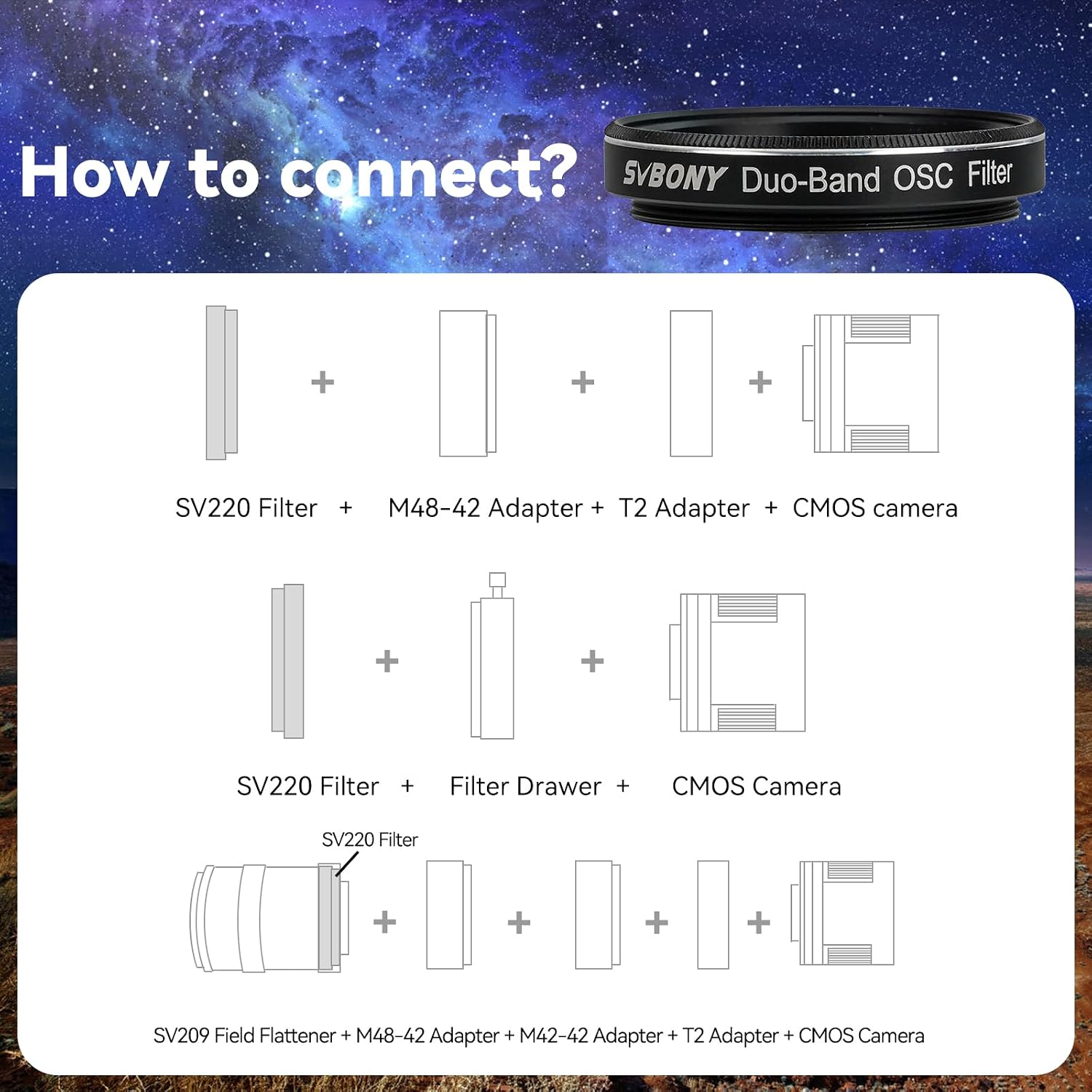

install the filter as the guide

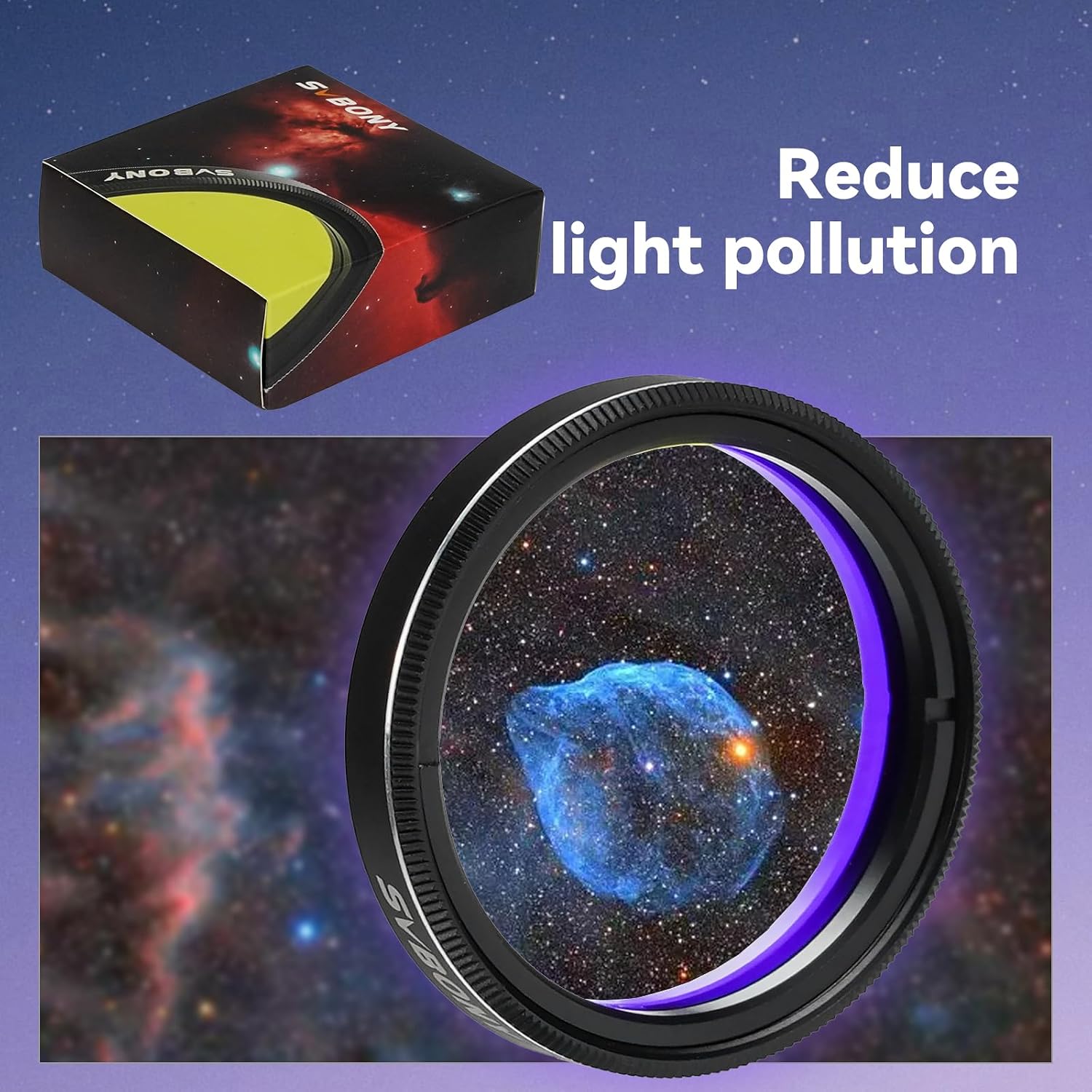

Block urban light pollution

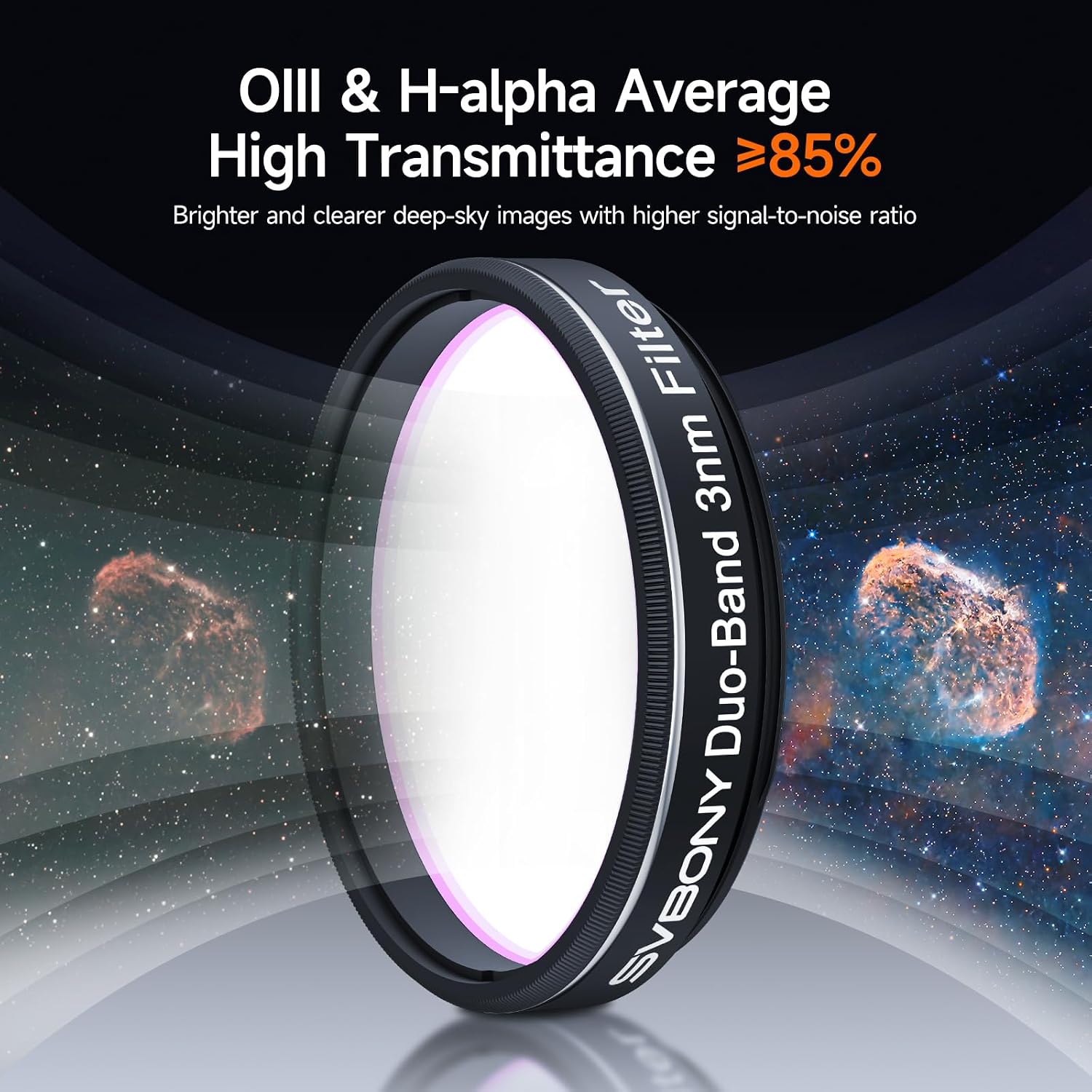

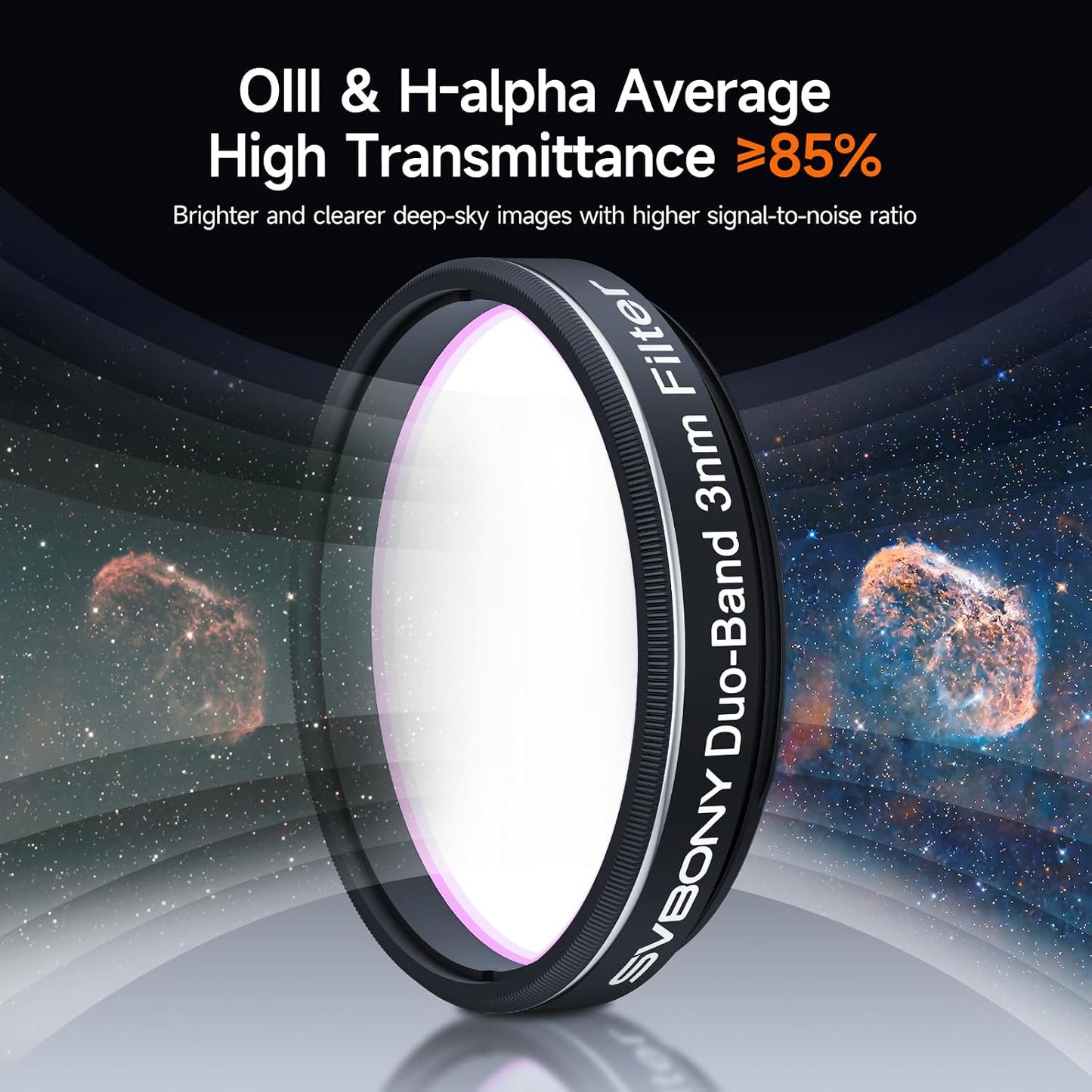

Enhance the light at H-Alpha (656nm) and OIII (500nm) wavelength. With a bandwidth of ±3.5nm centred on the 656nm and 500nm wavelength of Hα and OIII, for a total of 7nm. Effectively passes Hα and OIII light, resulting in clearer images. Suitable for imaging emission nebulae (not for imaging reflection nebula)

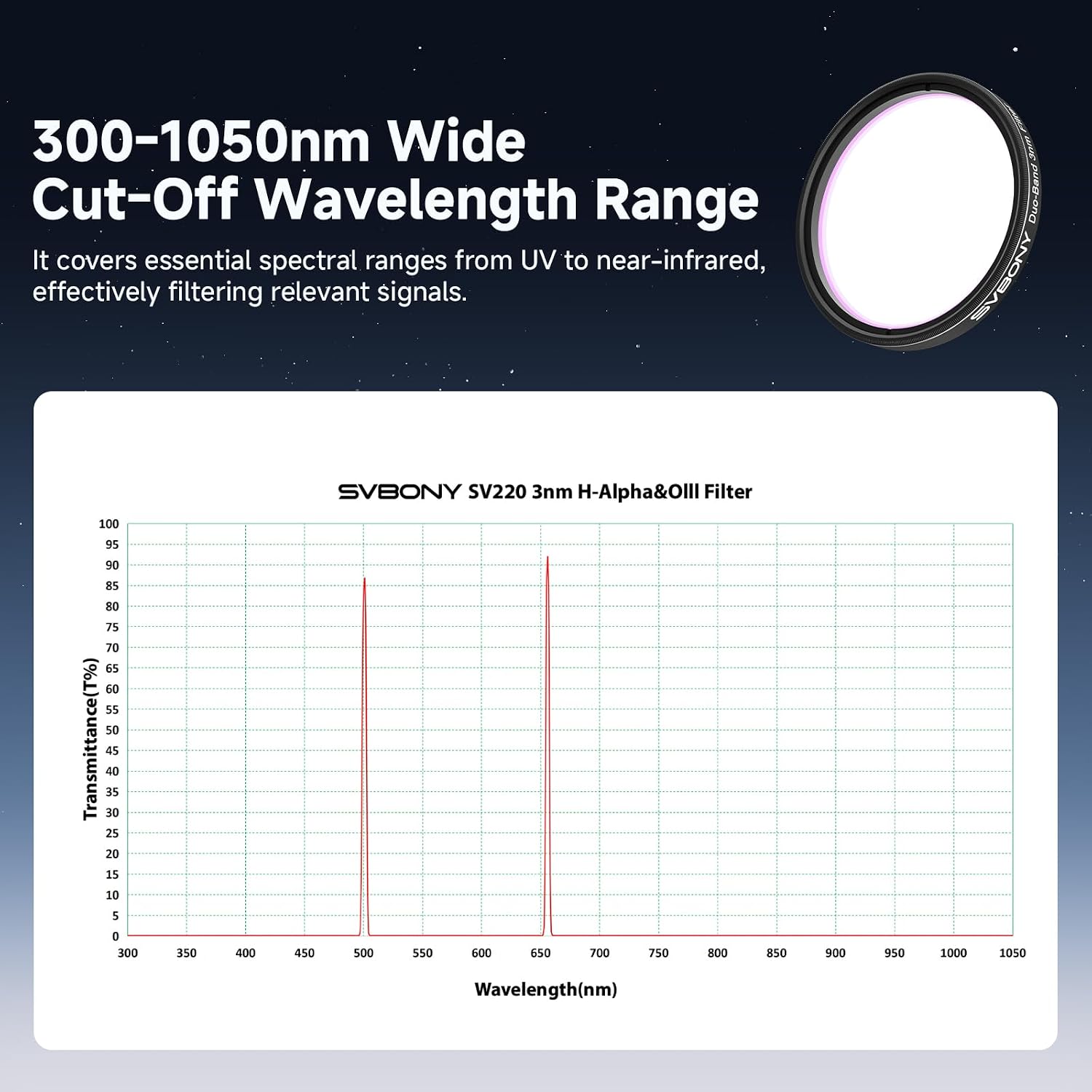

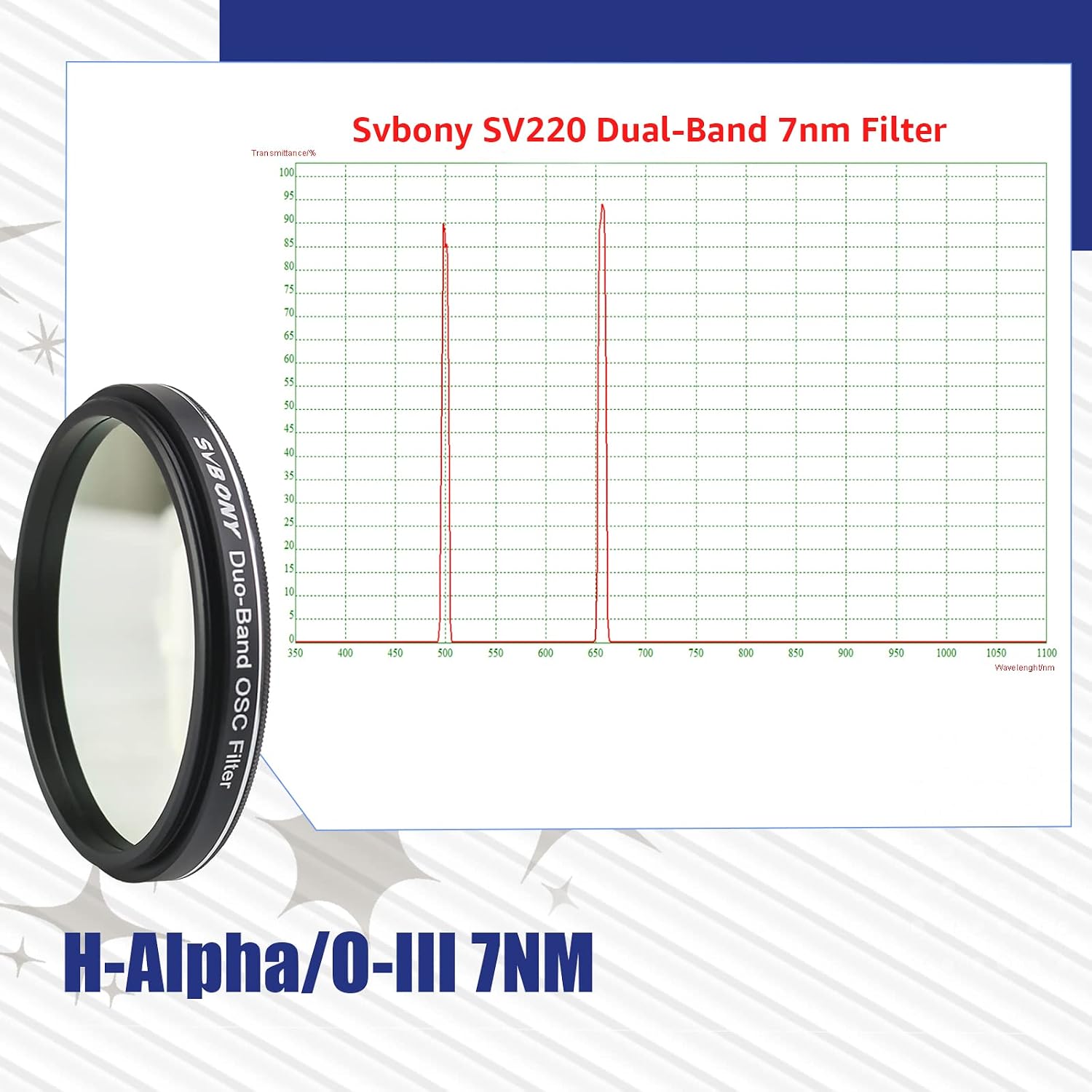

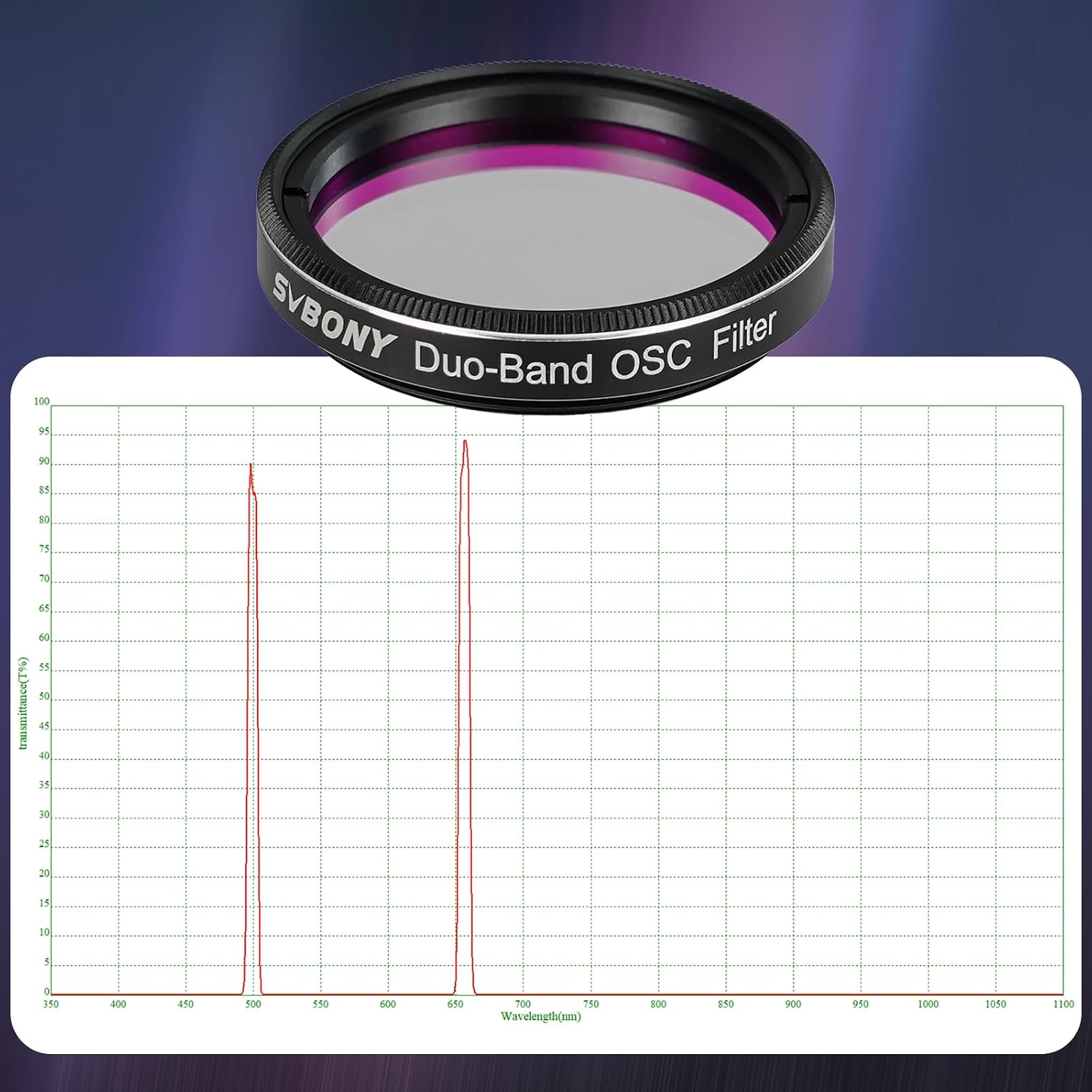

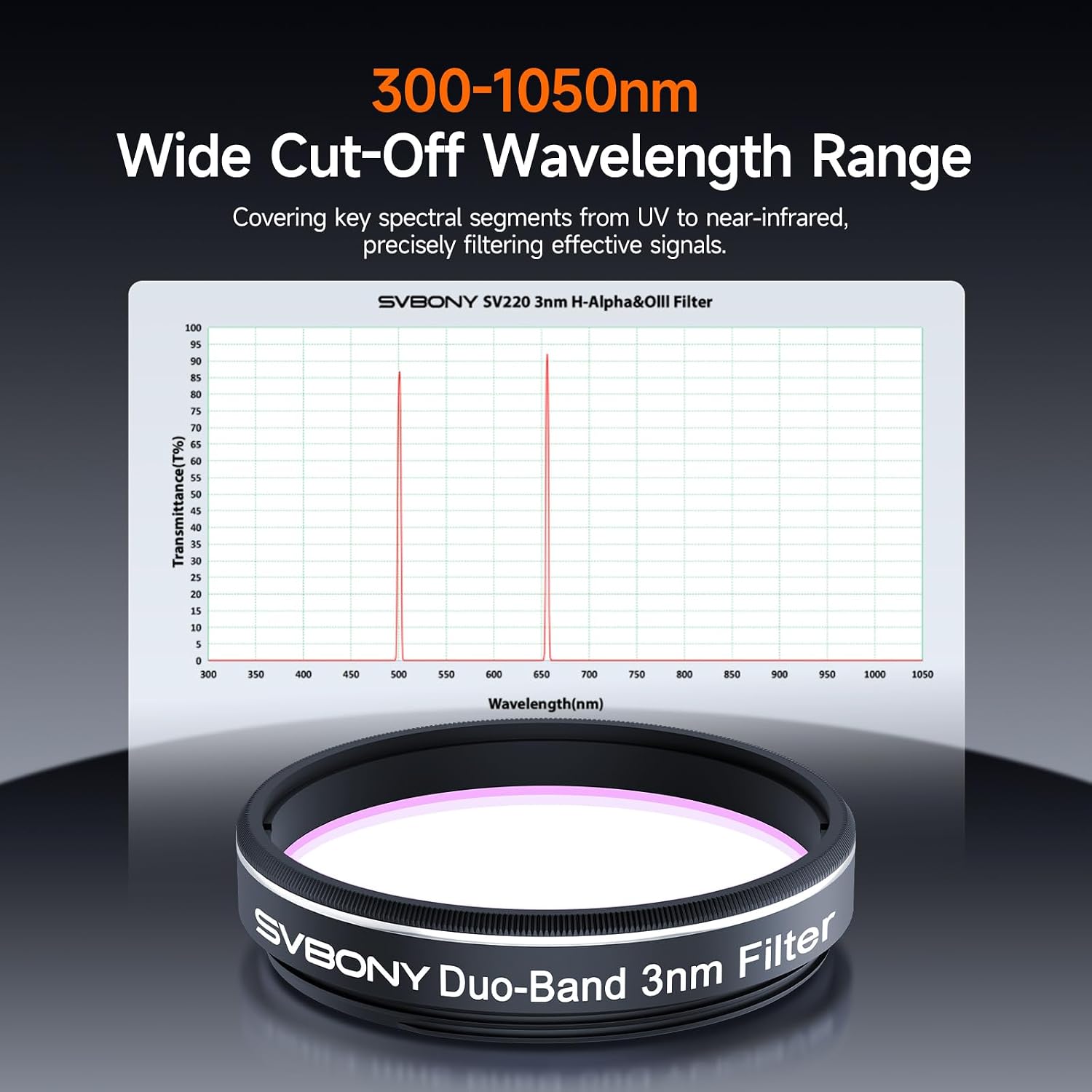

Astronomical filter with wavelength specifications for H-alpha 656.3nm & OIII 500.7nm, showing filter unit and corresponding spectral graph.

Svbony Product

	Telescope Color Cameras Buying Options	Telescope Filter Drawer	Telescope Refractor OTA Buying Options	Svbony SV220 3 nm	Zoom Telescope Eyepiece	Multi-bandpass Filter	Zenith Dielectric Mirror
Customer Reviews	75	230	136	7	80	34	270
Price	—	£55.99	—	£129.99	£129.99	£139.99	£54.99
Model	SV705C	SV226	SV503	SV220	SV215	SV260	SV188P
Feature	IMX585 color CMOS	M48x0.75/M28.5x0.6(female)	80ED F7	3nm	3-8mm focal length	SV260	Dielectric coatings
Feature	ST4 guiding por	Lock screw	Dual-speed rack	average OD5 cuttoff tech	Constant 56° AFOV	SV260	99% reflectivity
Feature	Back illumination structure	M42-M48 adapter	Low dispersion	85%+ transmission rate	10mm eye relief	Emission Reflection Nebula	Brass pressure ring
Application	Deep Sky Photography	Deep Sky Photography Visual	Deep Sky Photography Visual	Deep Sky Photography Visual	Astronomical Observation	StarField Photography	Planetary Deep Sky Visual

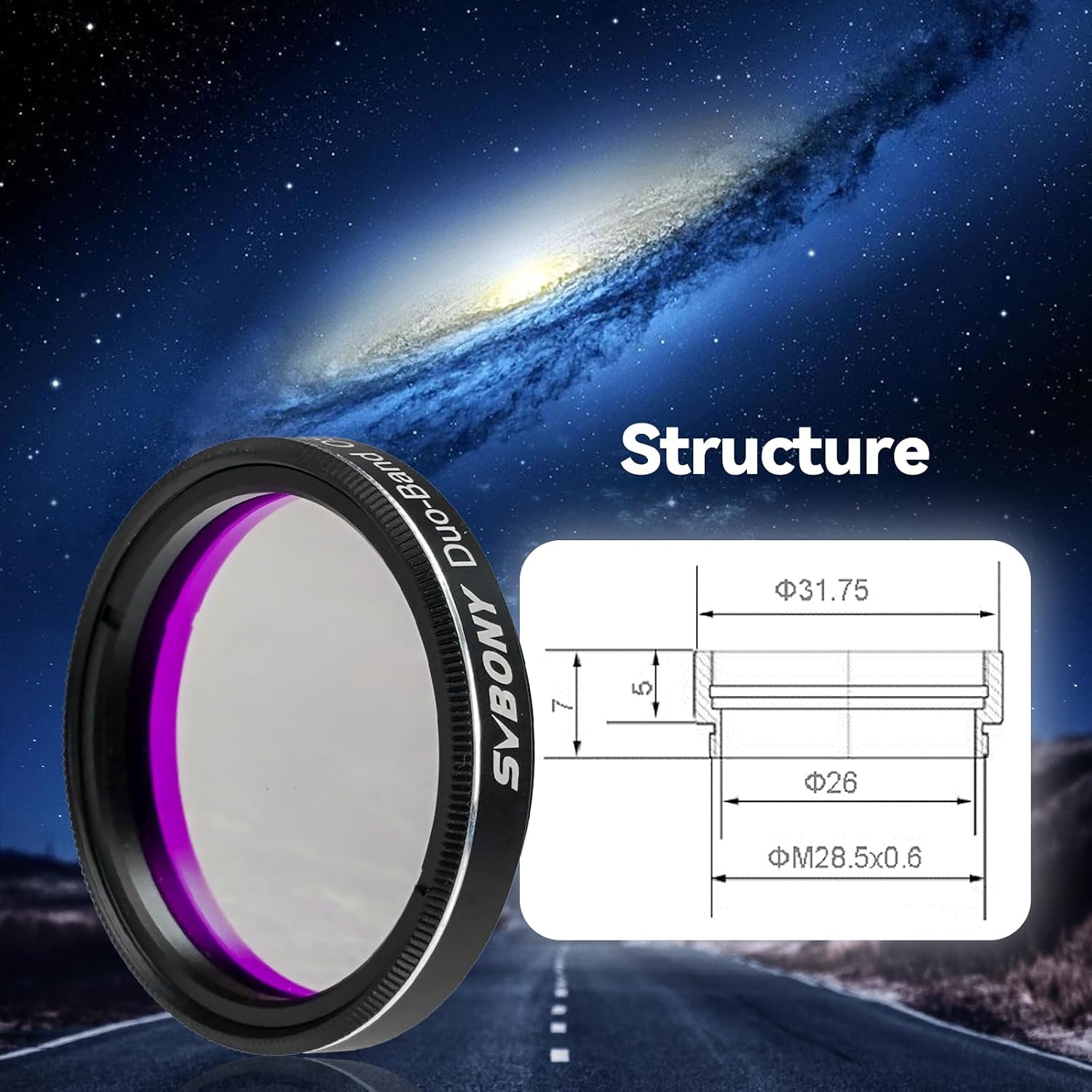

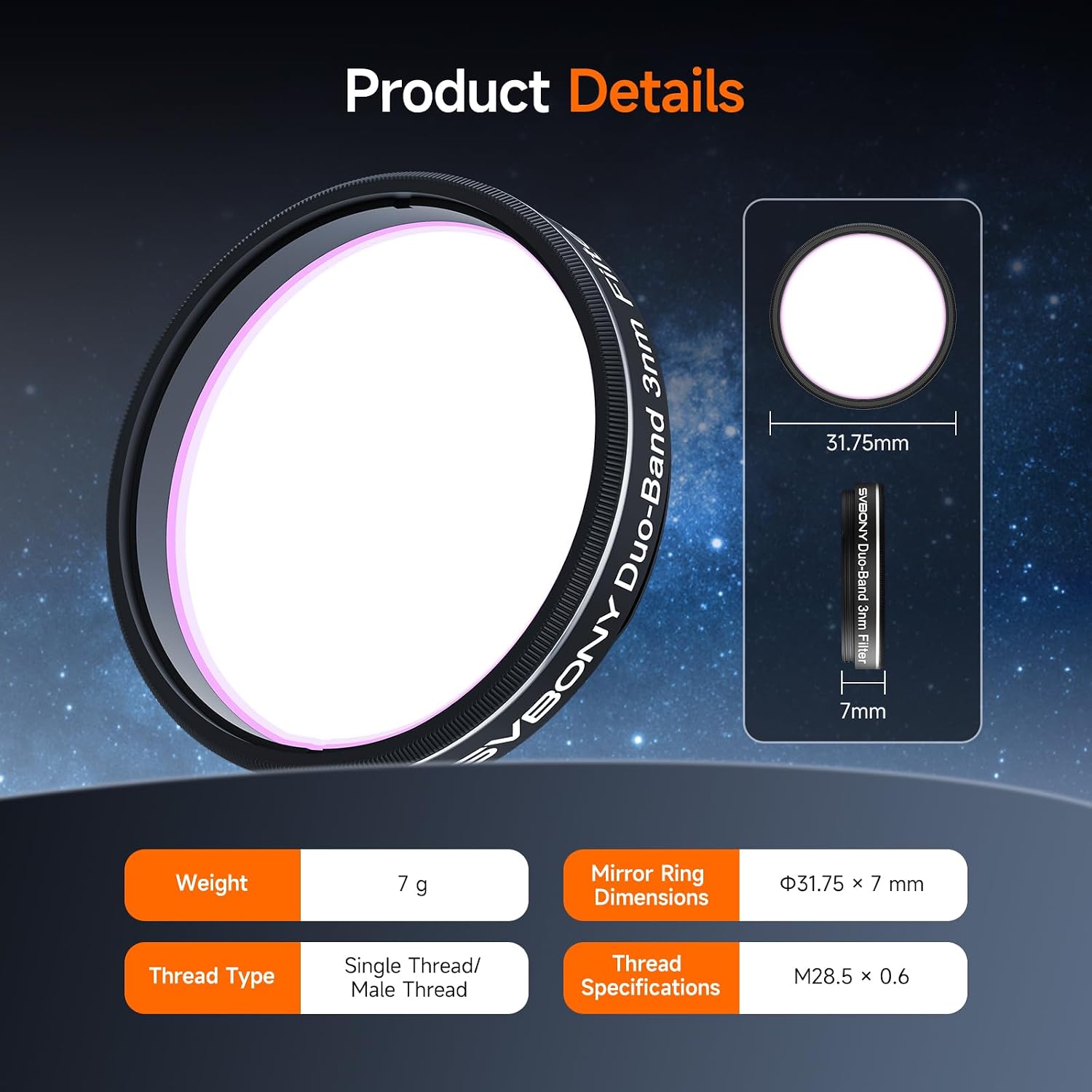

Specification

Size	1.25 inches
Lens Ring Size	Φ31.75x7mm
Weight	5.4g
Thread	Male Thread

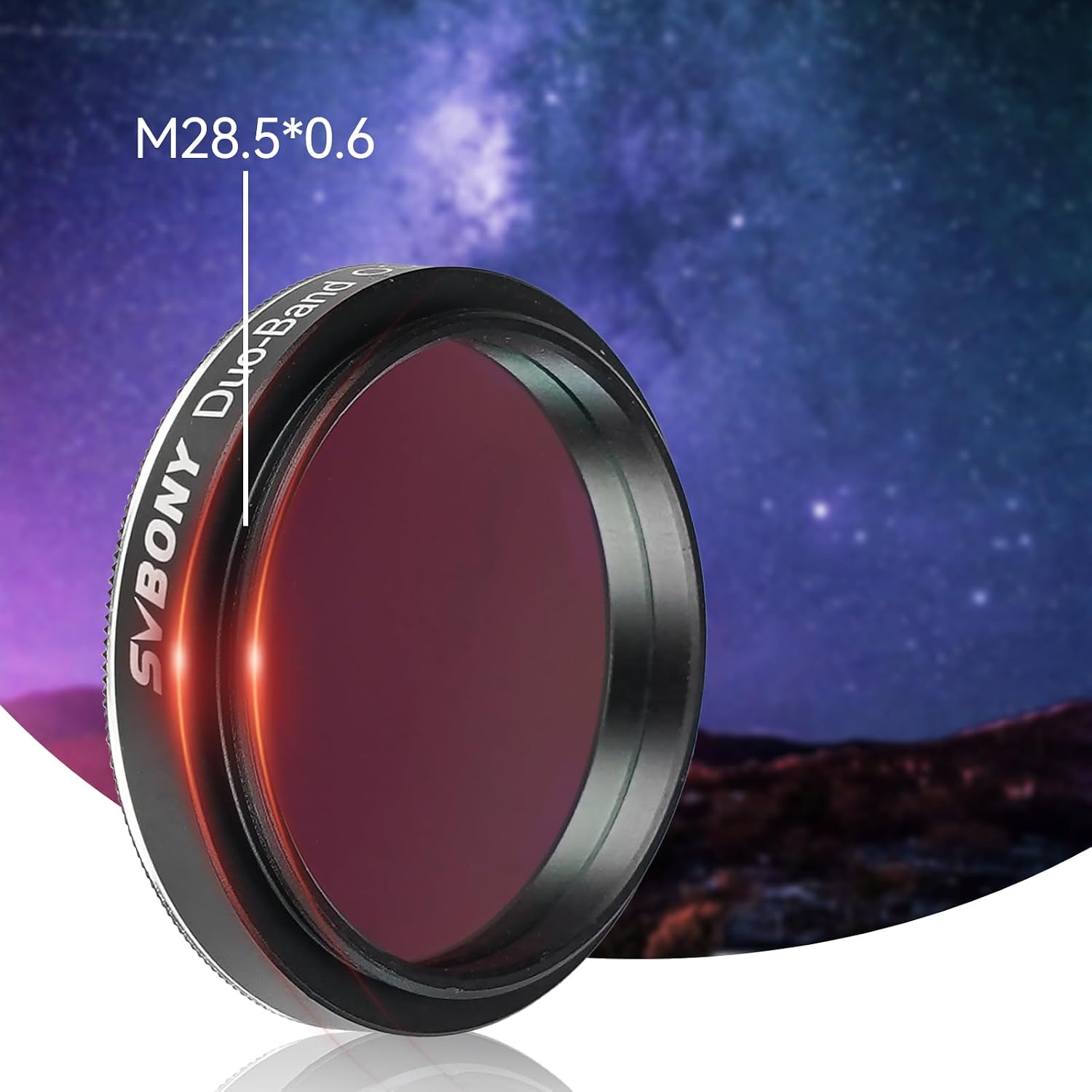

Thread Specification	M28.5*0.6
Material	6061TAluminum
Manufacturing Process/Surface	CNC/Blackening and matting oxidation

Dual narrowband telescope filter; duo band filter passes light at Hα 656nm and OIII 500nm wavelength; reduce the interference from natural light sources such as moonlight or artificial light pollution

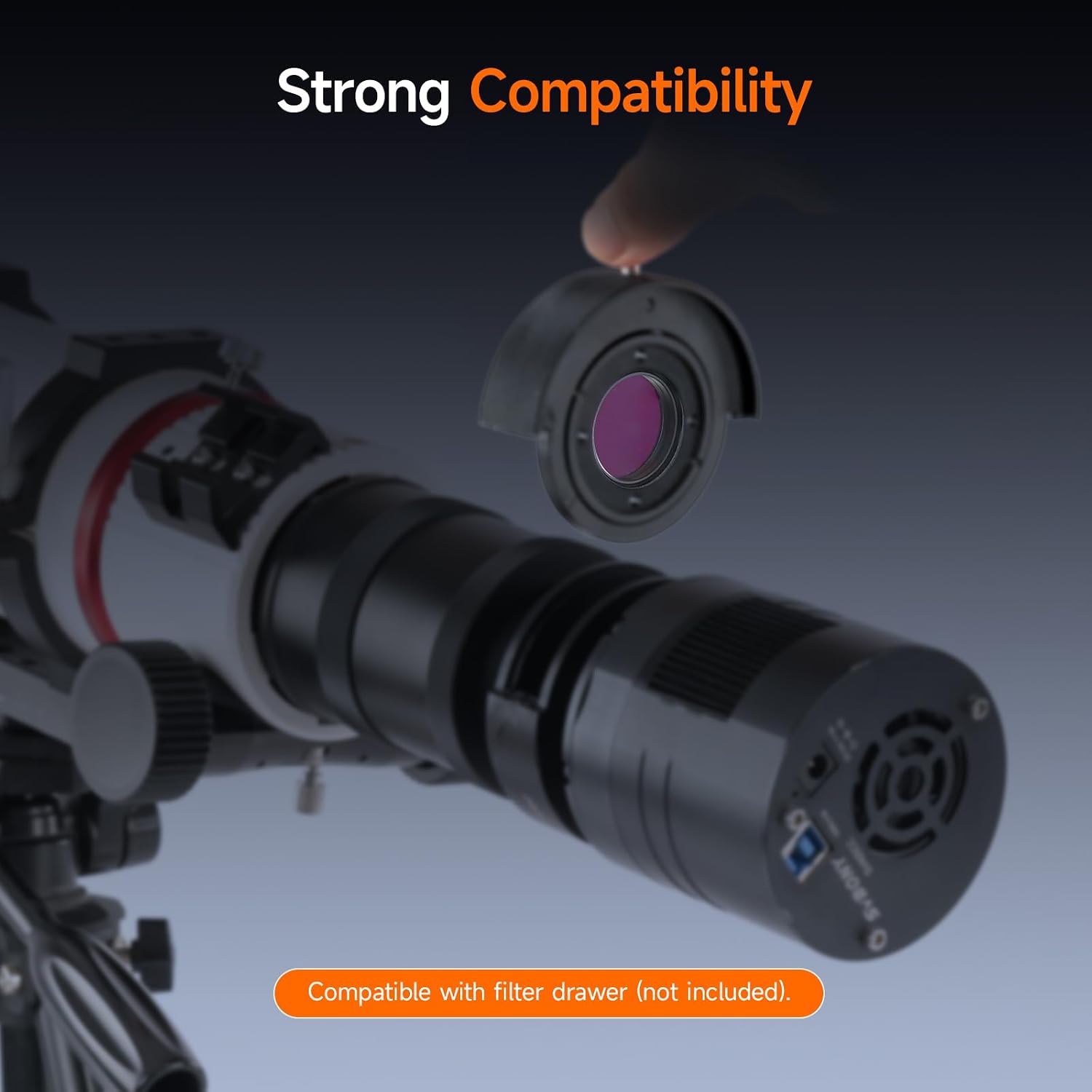

1.25" standard interface; Svbony SV220 can be used with all astronomy cameras and Electronic Filter Wheels or other telescope accessories; help improve the contrast and visibility of deep sky objects such as emission nebulae using a OSC camera

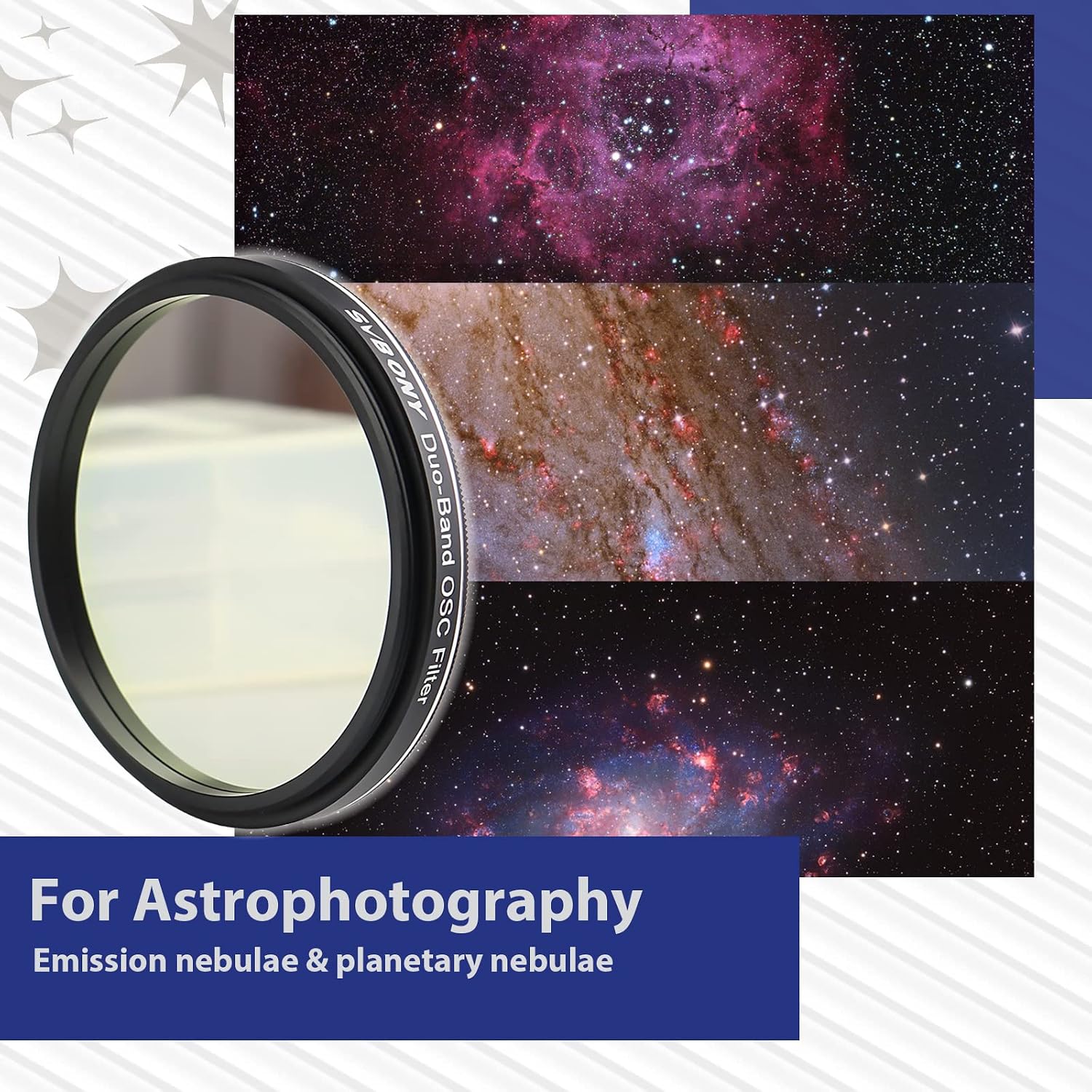

Astrophotography; this Svbony filter enhances contrast during visual observation of gaseous and planetary nebulae in all sky conditions; allows high-contrast imaging even in areas with strong light pollution
Improving contrast; central wave length reach 500.7nm; an increase in contrast can be perceived as an increase in brightness; SV220 nebula filter makes the contrast of the nebula and sky background increase not the nebula bright
Easy to use; SV220 dual-band filter makes it possible to simplify and decrease the difficulty and cumbersomeness of post-processing for users
Aluminum alloy rim; SV220 light pollution filter can be fitted to all kinds of astrophotography instruments; with a black matte finish to reduce glare and ghost image
Multi Resistant Coated; strong resistance to stains water and scratches; effective in extending the life of the filter

› See more product details

Brand	SVBONY
Material	Aluminium
Photo filter thread size	31.75 Millimetres
Coating description	Multi Coating
Photo filter effect type	Enhancing
Water resistance level	Water Resistant
Product dimensions	7.5L x 7.5W centimetres
Photo Filter Size	31.75 Millimeters
Number of items	1
